Describes a shape in 3D space. More...

#include <AtPattern.h>

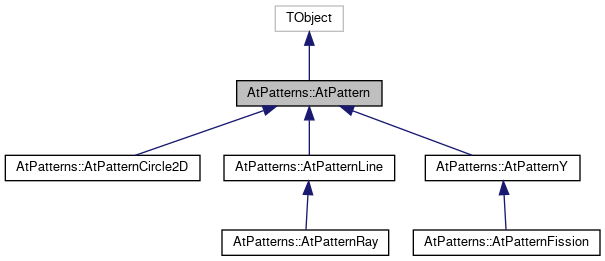

Inheritance diagram for AtPatterns::AtPattern:

[legend]

Collaboration diagram for AtPatterns::AtPattern:

Public Types
using	XYZPoint = ROOT::Math::XYZPoint

Public Member Functions
	AtPattern (Int_t numPoints=0)

	AtPattern (const AtPattern &)=default

	AtPattern (AtPattern &&)=default

virtual	~AtPattern ()=default

Double_t	FitPattern (const std::vector< AtHit > &pointsToFit, Double_t qThreshold=-1)
	Fit the pattern. More...

Double_t	FitPattern (const std::vector< const AtHit * > &pointsToFit, Double_t qThreshold=-1)

Double_t	FitPattern (const std::vector< XYZPoint > &pointsToFit)
	Fit the pattern shape. More...

virtual void	DefinePattern (const std::vector< XYZPoint > &points)=0
	Define based on points. More...

virtual void	DefinePattern (std::vector< double > par)
	Define based on parameters. More...

virtual Double_t	DistanceToPattern (const XYZPoint &point) const =0
	Closest distance to pattern. More...

virtual XYZPoint	ClosestPointOnPattern (const XYZPoint &point) const =0
	Closest point on pattern. More...

virtual XYZPoint	GetPointAt (double t) const =0
	Point on pattern at t. More...

TEveLine *	GetEveLine (double tMin, double tMax, int n) const
	Get visual representation of pattern. More...

virtual TEveElement *	GetEveElement () const =0
	Get visual representation of pattern. More...

virtual std::unique_ptr< AtPattern >	Clone () const =0

Int_t	GetNumPoints () const
	Number of points to define the pattern. More...

Double_t	GetChi2 () const

Int_t	GetNFree () const

virtual std::vector< double >	GetPatternPar () const
	Get list or parameters that describe the pattern. More...

Double_t	GetTotCharge () const

void	SetPatternPar (std::vector< double > par)

void	SetChi2 (double chi2)

Protected Types
using	TEveLineVec = std::vector< std::unique_ptr< TEveLine > >

Protected Member Functions
virtual void	FitPattern (const std::vector< XYZPoint > &pointsToFit, const std::vector< double > &pointCharge)=0

Protected Attributes
std::vector< Double_t >	fPatternPar

Double_t	fChi2 {NAN}

Int_t	fNFree {0}

const Int_t	fNumPoints

Double_t	fTotCharge {0}

Detailed Description

Describes a shape in 3D space.

A base class that describes the pattern of a track. For example a 2D circle or a line These patterns are parameterized by some number (t)

Definition at line 40 of file AtPattern.h.

Member Typedef Documentation

◆ TEveLineVec

using AtPatterns::AtPattern::TEveLineVec = std::vector<std::unique_ptr<TEveLine> >

protected

Definition at line 51 of file AtPattern.h.

◆ XYZPoint

using AtPatterns::AtPattern::XYZPoint = ROOT::Math::XYZPoint

Definition at line 42 of file AtPattern.h.

Constructor & Destructor Documentation

◆ AtPattern() [1/3]

AtPattern::AtPattern ( Int_t numPoints = 0 )

Definition at line 12 of file AtPattern.cxx.

◆ AtPattern() [2/3]

AtPatterns::AtPattern::AtPattern ( const AtPattern & )

default

◆ AtPattern() [3/3]

AtPatterns::AtPattern::AtPattern ( AtPattern && )

default

◆ ~AtPattern()

virtual AtPatterns::AtPattern::~AtPattern ( )

virtualdefault

Member Function Documentation

◆ Clone()

virtual std::unique_ptr<AtPattern> AtPatterns::AtPattern::Clone ( ) const

pure virtual

Implemented in AtPatterns::AtPatternY, AtPatterns::AtPatternLine, AtPatterns::AtPatternCircle2D, and AtPatterns::AtPatternRay.

◆ ClosestPointOnPattern()

virtual XYZPoint AtPatterns::AtPattern::ClosestPointOnPattern ( const XYZPoint & point ) const

pure virtual

Closest point on pattern.

Parameters

[in] point Point to get the closest point on the pattern.

Returns: Closest point on pattern

Implemented in AtPatterns::AtPatternY, AtPatterns::AtPatternLine, AtPatterns::AtPatternCircle2D, and AtPatterns::AtPatternRay.

◆ DefinePattern() [1/2]

virtual void AtPatterns::AtPattern::DefinePattern ( const std::vector< XYZPoint > & points )

pure virtual

Define based on points.

Will set-up the pattern using the vector of XYZPoints. Assumes the size of points is equal to fNumPoints

Parameters

[in] points 3D points to use when defining the pattern

Implemented in AtPatterns::AtPatternY, AtPatterns::AtPatternLine, AtPatterns::AtPatternCircle2D, and AtPatterns::AtPatternRay.

◆ DefinePattern() [2/2]

virtual void AtPatterns::AtPattern::DefinePattern ( std::vector< double > par )

inlinevirtual

Define based on parameters.

Sets up the pattern according to the passed parameters. The internal implementation of what these parameters mean may change. It is the inverse operation of GetPatternPar()

Reimplemented in AtPatterns::AtPatternY.

Definition at line 79 of file AtPattern.h.

◆ DistanceToPattern()

virtual Double_t AtPatterns::AtPattern::DistanceToPattern ( const XYZPoint & point ) const

pure virtual

Closest distance to pattern.

Parameters

[in] point Point to get the distance from.

Returns: distance from point to pattern in mm.

Implemented in AtPatterns::AtPatternY, AtPatterns::AtPatternLine, AtPatterns::AtPatternCircle2D, and AtPatterns::AtPatternRay.

◆ FitPattern() [1/4]

Double_t AtPattern::FitPattern	(	const std::vector< AtHit > &	pointsToFit,
		Double_t	qThreshold = `-1`
	)

Fit the pattern.

Fit the pattern shape using all hits in pointsToFit. Does a charge weighted fit if qThreshold is not equal to -1. Sets fPatternPar parameters, and fChi2.

Parameters

[in]	points	Points in 3D space to fit with charge information
[in]	qThreshold	Only fit points that are above this charge threshold.

Returns: Chi-squared of the fit

Definition at line 24 of file AtPattern.cxx.

◆ FitPattern() [2/4]

Double_t AtPattern::FitPattern	(	const std::vector< const AtHit * > &	pointsToFit,
		Double_t	qThreshold = `-1`
	)

Definition at line 30 of file AtPattern.cxx.

◆ FitPattern() [3/4]

Double_t AtPattern::FitPattern ( const std::vector< XYZPoint > & pointsToFit )

Fit the pattern shape.

Fit the pattern shape using all points in pointsToFit. Does not weight for charge. Sets fPatternPar parameters, and fChi2.

Parameters

[in] pointsToFit Points in 3D space to fit

Returns: Chi-squared of the fit

Definition at line 56 of file AtPattern.cxx.

◆ FitPattern() [4/4]

virtual void AtPatterns::AtPattern::FitPattern	(	const std::vector< XYZPoint > &	pointsToFit,
		const std::vector< double > &	pointCharge
	)

protectedpure virtual

Called by other versions of FitPattern. If pointCharge is not empty does charge weighted fit. Sets fPatternPar, fChi2, and fNFree

Implemented in AtPatterns::AtPatternY, AtPatterns::AtPatternLine, AtPatterns::AtPatternCircle2D, and AtPatterns::AtPatternFission.

◆ GetChi2()

Double_t AtPatterns::AtPattern::GetChi2 ( ) const

inline

Definition at line 131 of file AtPattern.h.

◆ GetEveElement()

virtual TEveElement* AtPatterns::AtPattern::GetEveElement ( ) const

pure virtual

Get visual representation of pattern.

Calls GetEveLine(double tMin, double tMax, int n) with reasonable defaults for the shape

Implemented in AtPatterns::AtPatternY, AtPatterns::AtPatternLine, AtPatterns::AtPatternCircle2D, and AtPatterns::AtPatternRay.

◆ GetEveLine()

TEveLine * AtPattern::GetEveLine	(	double	tMin,
		double	tMax,
		int	n
	)		const

Get visual representation of pattern.

Implemented for single-valued patterns (one point in space per value of parameter t)

Todo:: Generalize for multi-valued patterns

Parameters

[in]	tMin	Parameter to start drawing line at
[in]	tMax	Parameter to stop drawing line at
[in]	dt	Step size between points on polyline

Returns: Representation of line

Definition at line 63 of file AtPattern.cxx.

◆ GetNFree()

Int_t AtPatterns::AtPattern::GetNFree ( ) const

inline

Definition at line 132 of file AtPattern.h.

◆ GetNumPoints()

Int_t AtPatterns::AtPattern::GetNumPoints ( ) const

inline

Number of points to define the pattern.

The minimum number of unique points needed to define the pattern.

Definition at line 130 of file AtPattern.h.

◆ GetPatternPar()

virtual std::vector<double> AtPatterns::AtPattern::GetPatternPar ( ) const

inlinevirtual

Get list or parameters that describe the pattern.

It is the inverse operation of DefinePattern(std::vector<double>)

Reimplemented in AtPatterns::AtPatternY.

Definition at line 139 of file AtPattern.h.

◆ GetPointAt()

virtual XYZPoint AtPatterns::AtPattern::GetPointAt ( double t ) const

pure virtual

Point on pattern at t.

Get the point on the pattern at parameter t. What t physically represents is pattern dependent.

Todo:: Generalize for multi-valued patterns

Implemented in AtPatterns::AtPatternY, AtPatterns::AtPatternLine, AtPatterns::AtPatternRay, and AtPatterns::AtPatternCircle2D.

◆ GetTotCharge()

Double_t AtPatterns::AtPattern::GetTotCharge ( ) const

inline

Definition at line 141 of file AtPattern.h.

◆ SetChi2()

void AtPatterns::AtPattern::SetChi2 ( double chi2 )

inline

Definition at line 143 of file AtPattern.h.

◆ SetPatternPar()

void AtPatterns::AtPattern::SetPatternPar ( std::vector< double > par )

inline

Definition at line 142 of file AtPattern.h.

Member Data Documentation

◆ fChi2

Double_t AtPatterns::AtPattern::fChi2 {NAN}

protected

Definition at line 46 of file AtPattern.h.

◆ fNFree

Int_t AtPatterns::AtPattern::fNFree {0}

protected

Definition at line 47 of file AtPattern.h.

◆ fNumPoints

const Int_t AtPatterns::AtPattern::fNumPoints

protected

Definition at line 48 of file AtPattern.h.

◆ fPatternPar

std::vector<Double_t> AtPatterns::AtPattern::fPatternPar

protected

Definition at line 45 of file AtPattern.h.

◆ fTotCharge

Double_t AtPatterns::AtPattern::fTotCharge {0}

protected

Definition at line 49 of file AtPattern.h.

The documentation for this class was generated from the following files:

/github/workspace/AtData/AtPattern/AtPattern.h
/github/workspace/AtData/AtPattern/AtPattern.cxx
