Describes a Y track. More...

#include <AtPatternY.h>

Inheritance diagram for AtPatterns::AtPatternY:

[legend]

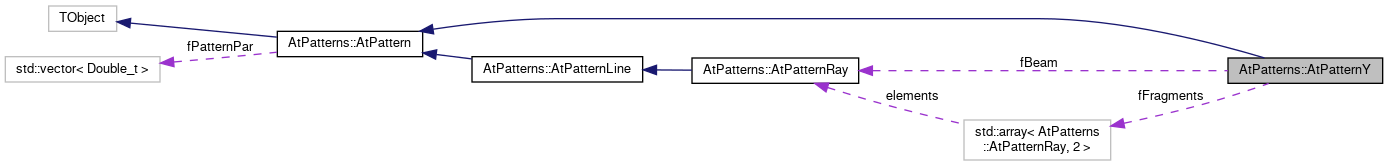

Collaboration diagram for AtPatterns::AtPatternY:

[legend]

Public Types
using	XYZPoint = ROOT::Math::XYZPoint

using	XYZVector = ROOT::Math::XYZVector

Public Types inherited from AtPatterns::AtPattern
using	XYZPoint = ROOT::Math::XYZPoint

Public Member Functions
	AtPatternY ()

XYZPoint	GetVertex () const
	Get the vertex of the Y shape. More...

XYZVector	GetBeamDirection () const
	Get the direction of the beam ray. More...

XYZVector	GetFragmentDirection (int frag) const
	Get the direction of the fragment rays. More...

int	GetPointAssignment (const XYZPoint &point) const

virtual void	DefinePattern (const std::vector< XYZPoint > &points) override
	Define based on points. More...

virtual void	DefinePattern (std::vector< double > par) override

virtual Double_t	DistanceToPattern (const XYZPoint &point) const override
	Closest distance to pattern. More...

virtual XYZPoint	ClosestPointOnPattern (const XYZPoint &point) const override
	Closest point on pattern. More...

virtual XYZPoint	GetPointAt (double z) const override
	Get point along the beam axis at z. More...

virtual TEveElement *	GetEveElement () const override
	Get visual representation of pattern. More...

virtual std::unique_ptr< AtPattern >	Clone () const override

virtual std::vector< double >	GetPatternPar () const override
	Get list or parameters that describe the pattern. More...

Public Member Functions inherited from AtPatterns::AtPattern
	AtPattern (Int_t numPoints=0)

	AtPattern (const AtPattern &)=default

	AtPattern (AtPattern &&)=default

virtual	~AtPattern ()=default

Double_t	FitPattern (const std::vector< AtHit > &pointsToFit, Double_t qThreshold=-1)
	Fit the pattern. More...

Double_t	FitPattern (const std::vector< const AtHit * > &pointsToFit, Double_t qThreshold=-1)

Double_t	FitPattern (const std::vector< XYZPoint > &pointsToFit)
	Fit the pattern shape. More...

TEveLine *	GetEveLine (double tMin, double tMax, int n) const
	Get visual representation of pattern. More...

Int_t	GetNumPoints () const
	Number of points to define the pattern. More...

Double_t	GetChi2 () const

Int_t	GetNFree () const

Double_t	GetTotCharge () const

void	SetPatternPar (std::vector< double > par)

void	SetChi2 (double chi2)

Protected Member Functions
virtual void	FitPattern (const std::vector< XYZPoint > &points, const std::vector< double > &charge) override

void	DefinePattern (const XYZPoint &vertex, const XYZVector &beamDir, const std::array< XYZVector, 2 > &fragDir)

Protected Attributes
AtPatternRay	fBeam

std::array< AtPatternRay, 2 >	fFragments

Protected Attributes inherited from AtPatterns::AtPattern
std::vector< Double_t >	fPatternPar

Double_t	fChi2 {NAN}

Int_t	fNFree {0}

const Int_t	fNumPoints

Double_t	fTotCharge {0}

Additional Inherited Members
Protected Types inherited from AtPatterns::AtPattern
using	TEveLineVec = std::vector< std::unique_ptr< TEveLine > >

Detailed Description

Describes a Y track.

Definition at line 29 of file AtPatternY.h.

Member Typedef Documentation

◆ XYZPoint

using AtPatterns::AtPatternY::XYZPoint = ROOT::Math::XYZPoint

Definition at line 35 of file AtPatternY.h.

◆ XYZVector

using AtPatterns::AtPatternY::XYZVector = ROOT::Math::XYZVector

Definition at line 36 of file AtPatternY.h.

Constructor & Destructor Documentation

◆ AtPatternY()

AtPatternY::AtPatternY ( )

Definition at line 29 of file AtPatternY.cxx.

Member Function Documentation

◆ Clone()

virtual std::unique_ptr<AtPattern> AtPatterns::AtPatternY::Clone ( ) const

inlineoverridevirtual

Implements AtPatterns::AtPattern.

Definition at line 69 of file AtPatternY.h.

◆ ClosestPointOnPattern()

AtPatternY::XYZPoint AtPatternY::ClosestPointOnPattern ( const XYZPoint & point ) const

overridevirtual

Closest point on pattern.

Parameters

[in] point Point to get the closest point on the pattern.

Returns: Closest point on pattern

Implements AtPatterns::AtPattern.

Definition at line 65 of file AtPatternY.cxx.

◆ DefinePattern() [1/3]

void AtPatternY::DefinePattern ( const std::vector< XYZPoint > & points )

overridevirtual

Define based on points.

Will set-up the pattern using the vector of XYZPoints. Assumes the size of points is equal to fNumPoints

Parameters

[in] points 3D points to use when defining the pattern

Implements AtPatterns::AtPattern.

Definition at line 150 of file AtPatternY.cxx.

◆ DefinePattern() [2/3]

void AtPatternY::DefinePattern	(	const XYZPoint &	vertex,
		const XYZVector &	beamDir,
		const std::array< XYZVector, 2 > &	fragDir
	)

protected

Definition at line 142 of file AtPatternY.cxx.

◆ DefinePattern() [3/3]

void AtPatternY::DefinePattern ( std::vector< double > par )

overridevirtual

Defines the pattern using the following parameters vertex = (par[0], par[1], par[2]) beamDir = (par[3], par[4], par[5]) fragDir[0] = (par[6], par[7], par[8]) fragDir[1] = (par[9], par[10], par[11])

Reimplemented from AtPatterns::AtPattern.

Definition at line 127 of file AtPatternY.cxx.

◆ DistanceToPattern()

Double_t AtPatternY::DistanceToPattern ( const XYZPoint & point ) const

overridevirtual

Closest distance to pattern.

Parameters

[in] point Point to get the distance from.

Returns: distance from point to pattern in mm.

Implements AtPatterns::AtPattern.

Definition at line 81 of file AtPatternY.cxx.

◆ FitPattern()

void AtPatternY::FitPattern	(	const std::vector< XYZPoint > &	pointsToFit,
		const std::vector< double > &	pointCharge
	)

overrideprotectedvirtual

Called by other versions of FitPattern. If pointCharge is not empty does charge weighted fit. Sets fPatternPar, fChi2, and fNFree

Implements AtPatterns::AtPattern.

Reimplemented in AtPatterns::AtPatternFission.

Definition at line 186 of file AtPatternY.cxx.

◆ GetBeamDirection()

XYZVector AtPatterns::AtPatternY::GetBeamDirection ( ) const

inline

Get the direction of the beam ray.

Returns: Direction of beam (points from vertex to window).

Definition at line 48 of file AtPatternY.h.

◆ GetEveElement()

TEveElement * AtPatternY::GetEveElement ( ) const

overridevirtual

Get visual representation of pattern.

Calls GetEveLine(double tMin, double tMax, int n) with reasonable defaults for the shape

Implements AtPatterns::AtPattern.

Definition at line 31 of file AtPatternY.cxx.

◆ GetFragmentDirection()

XYZVector AtPatterns::AtPatternY::GetFragmentDirection ( int frag ) const

inline

Get the direction of the fragment rays.

Parameters

[in] frag ID of the fragment (0 or 1)

Returns: Direction of fragment (points away from vertex).

Definition at line 55 of file AtPatternY.h.

◆ GetPatternPar()

std::vector< double > AtPatternY::GetPatternPar ( ) const

overridevirtual

Get list or parameters that describe the pattern.

It is the inverse operation of DefinePattern(std::vector<double>)

Reimplemented from AtPatterns::AtPattern.

Definition at line 102 of file AtPatternY.cxx.

◆ GetPointAssignment()

int AtPatternY::GetPointAssignment ( const XYZPoint & point ) const

Returns an integer specifying which ray the point is closest to. 0 -> fragment 0. 1 -> fragment 1. 2 -> beam.

Definition at line 90 of file AtPatternY.cxx.

◆ GetPointAt()

AtPatternY::XYZPoint AtPatternY::GetPointAt ( double z ) const

overridevirtual

Get point along the beam axis at z.

The parameter passed has no defined physical interpretation.

Parameters

[in] z Location of point at parameter.

Implements AtPatterns::AtPattern.

Definition at line 180 of file AtPatternY.cxx.

◆ GetVertex()

XYZPoint AtPatterns::AtPatternY::GetVertex ( ) const

inline

Get the vertex of the Y shape.

Definition at line 42 of file AtPatternY.h.

Member Data Documentation

◆ fBeam

AtPatternRay AtPatterns::AtPatternY::fBeam

protected

Definition at line 31 of file AtPatternY.h.

◆ fFragments

std::array<AtPatternRay, 2> AtPatterns::AtPatternY::fFragments

protected

Definition at line 32 of file AtPatternY.h.

The documentation for this class was generated from the following files:

/github/workspace/AtData/AtPattern/AtPatternY.h
/github/workspace/AtData/AtPattern/AtPatternY.cxx
