#include <AtMCFission.h>

Inheritance diagram for MCFitter::AtMCFission:

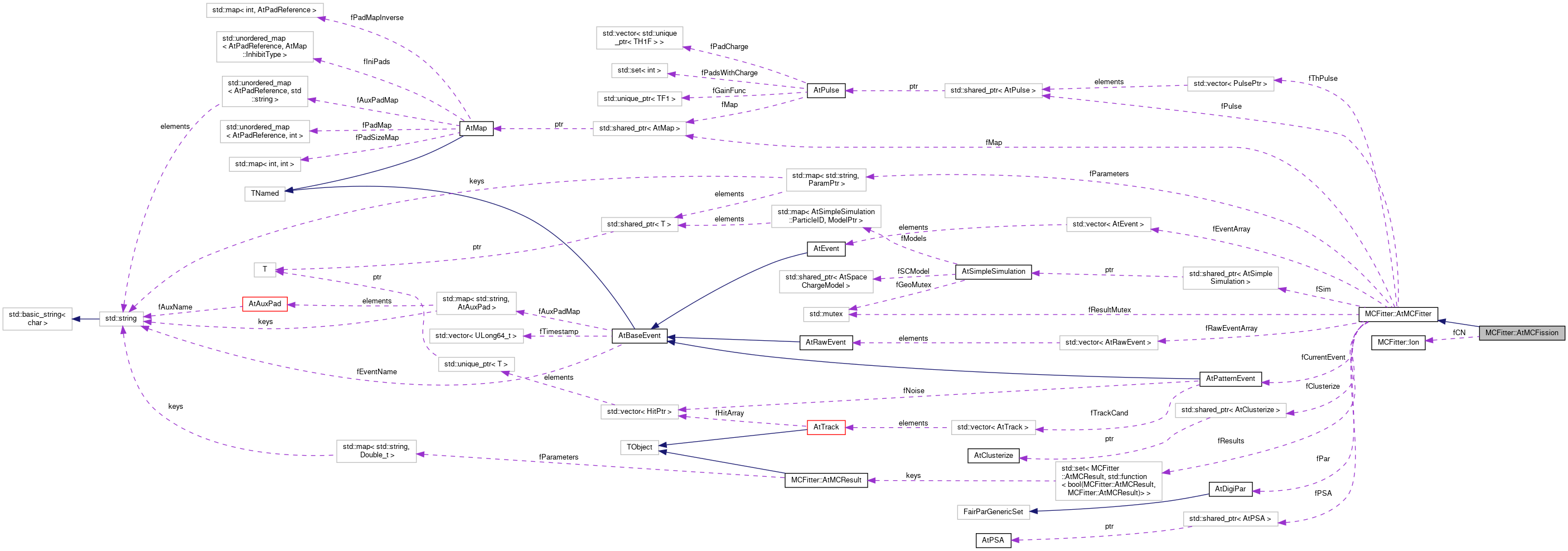

Collaboration diagram for MCFitter::AtMCFission:

[legend]

Public Member Functions
	AtMCFission (SimPtr sim, ClusterPtr cluster, PulsePtr pulse)

virtual	~AtMCFission ()=default

void	SetCN (Ion cn)

void	SetChargeObjective (ObjectiveFuncCharge obj)

void	SetAmp (float amp)

void	SetZRange (int Zmin, int Zmax)

Public Member Functions inherited from MCFitter::AtMCFitter
	AtMCFitter (SimPtr sim, ClusterPtr cluster, PulsePtr pulse)

virtual	~AtMCFitter ()=default

void	Init ()

void	SetPSA (PsaPtr psa)

void	Exec (const AtPatternEvent &event)

ParamPtr	GetParameter (const std::string &name) const

void	FillResultArrays (TClonesArray &resultArray, TClonesArray &simEvent, TClonesArray &simRawEvent)

void	SetNumIter (int iter)

void	SetNumRounds (int rounds)
	Set number of times to run fNumIter iterations and then re-center and truncate the parameter space. More...

void	SetTimeEvent (bool val)

void	SetNumEventsToSave (int num)

void	SetNumThreads (int num)

Static Public Member Functions
static double	ObjectiveChargeChi2 (const std::vector< double > &exp, const std::vector< double > &sim, const double *par)

static double	ObjectiveChargeChi2Norm (const std::vector< double > &exp, const std::vector< double > &sim, const double *par)

static double	ObjectiveChargeDiff2 (const std::vector< double > &exp, const std::vector< double > &sim, const double *par)

Protected Types
using	XYZPoint = ROOT::Math::XYZPoint

using	XYZVector = ROOT::Math::XYZVector

using	XYZEVector = ROOT::Math::PxPyPzEVector

using	ObjectiveFuncCharge = std::function< double(const std::vector< double > &exp, const std::vector< double > &sim, const double *par)>

Protected Types inherited from MCFitter::AtMCFitter
using	ParamPtr = std::shared_ptr< AtParameterDistribution >

using	SimPtr = std::shared_ptr< AtSimpleSimulation >

using	ClusterPtr = std::shared_ptr< AtClusterize >

using	PulsePtr = std::shared_ptr< AtPulse >

using	MapPtr = std::shared_ptr< AtMap >

using	PsaPtr = std::shared_ptr< AtPSA >

using	ObjPair = std::pair< int, double >

Protected Member Functions
virtual void	CreateParamDistros () override
	Create the parameter distributions to use for the fit. More...

virtual void	SetParamDistributions (const AtPatternEvent &event) override
	Set parameter distributions (mean/spread) from the event. More...

virtual double	ObjectiveFunction (const AtBaseEvent &expEvent, int SimEventID, AtMCResult &definition) override
	This is the thing we are minimizing between events (SimEventID is index in TClonesArray) More...

virtual TClonesArray	SimulateEvent (AtMCResult &definition) override

virtual AtMCResult	DefineEvent () override

double	ObjectiveCharge (const AtFissionEvent &expEvent, int SimEventID, AtMCResult &def)

double	ObjectiveCharge (const std::array< std::vector< double >, 2 > &exp, const std::array< std::vector< double >, 2 > &sim, AtMCResult &definition)

double	ObjectivePositionPads (const AtFissionEvent &expEvent, int SimEventID)

double	ObjectivePosition (const AtFissionEvent &expEvent, int SimEventID)

double	ObjectiveChargePads (const AtFissionEvent &expEvent, int SimEventID, AtMCResult &def)

XYZPoint	GetVertex (AtMCResult &)

std::array< Ion, 2 >	GetFragmentSpecies (AtMCResult &, const Ion &CN)

XYZVector	GetBeamDir (AtMCResult &, const std::array< XYZVector, 2 > &ffDir, double pTrans)

XYZVector	GetBeamDirSample (AtMCResult &, const std::array< XYZVector, 2 > &ffDir)

XYZVector	GetBeamDirSameV (AtMCResult &, const std::array< XYZVector, 2 > &ffDir)

std::array< XYZVector, 2 >	GetMomDirLab (AtMCResult &)

void	SetMomMagnitude (std::array< XYZVector, 2 > &mom, double pTrans)

double	ObjectivePosition (double uE, double sE, double uO, double sO)

double	ObjectivePosition4 (double uE, double sE, double uO, double sO)

double	ObjectivePosition3 (double uE, double sE, double uO, double sO)

double	ObjectivePosition2 (double uE, double sE, double uO, double sO)

Protected Member Functions inherited from MCFitter::AtMCFitter
void	RunRound ()

void	RunIterRange (int startIter, int numIter, AtPulse *pulse)

virtual void	RecenterParamDistributions ()

int	DigitizeEvent (const TClonesArray &points, int idx, AtPulse *pulse)

Static Protected Member Functions
static double	violaEn (int A, int Z)

Protected Attributes
Ion	fCN {85, 204}

int	fZmin = 26

int	fZmax = 59

XYZVector	fNominalBeamDir {11.464, 3.754, 1000}

ObjectiveFuncCharge	fObjCharge {ObjectiveChargeChi2}
	Objective function to minimize the difference between A*sim and exp charge curves. More...

float	fAmp = 1

bool	fFitAmp = true

Protected Attributes inherited from MCFitter::AtMCFitter
std::map< std::string, ParamPtr >	fParameters

MapPtr	fMap

SimPtr	fSim

ClusterPtr	fClusterize

PulsePtr	fPulse

PsaPtr	fPSA {nullptr}

int	fNumIter {1}

int	fNumRounds {1}

int	fNumEventsToSave {10}

bool	fTimeEvent {false}

int	fNumThreads {1}

const AtPatternEvent *	fCurrentEvent {nullptr}

std::vector< PulsePtr >	fThPulse

const AtDigiPar *	fPar {nullptr}

std::vector< AtRawEvent >	fRawEventArray

std::vector< AtEvent >	fEventArray

std::mutex	fResultMutex
	Store the iteration number sorted by lowest objective funtion. More...

std::set< AtMCResult, std::function< bool(AtMCResult, AtMCResult)> >	fResults

Detailed Description

Definition at line 26 of file AtMCFission.h.

Member Typedef Documentation

◆ ObjectiveFuncCharge

using MCFitter::AtMCFission::ObjectiveFuncCharge = std::function<double(const std::vector<double> &exp, const std::vector<double> &sim, const double *par)>

protected

Definition at line 31 of file AtMCFission.h.

◆ XYZEVector

using MCFitter::AtMCFission::XYZEVector = ROOT::Math::PxPyPzEVector

protected

Definition at line 30 of file AtMCFission.h.

◆ XYZPoint

using MCFitter::AtMCFission::XYZPoint = ROOT::Math::XYZPoint

protected

Definition at line 28 of file AtMCFission.h.

◆ XYZVector

using MCFitter::AtMCFission::XYZVector = ROOT::Math::XYZVector

protected

Definition at line 29 of file AtMCFission.h.

Constructor & Destructor Documentation

◆ AtMCFission()

MCFitter::AtMCFission::AtMCFission	(	SimPtr	sim,
		ClusterPtr	cluster,
		PulsePtr	pulse
	)

inline

Definition at line 50 of file AtMCFission.h.

◆ ~AtMCFission()

virtual MCFitter::AtMCFission::~AtMCFission ( )

virtualdefault

Member Function Documentation

◆ CreateParamDistros()

void AtMCFission::CreateParamDistros ( )

overrideprotectedvirtual

Create the parameter distributions to use for the fit.

Implements MCFitter::AtMCFitter.

Definition at line 56 of file AtMCFission.cxx.

◆ DefineEvent()

AtMCResult AtMCFission::DefineEvent ( )

overrideprotectedvirtual

Sample parameter distributions and constrain the system to simulate an event. The parameters in AtMCResult will be used to then simulate an event. This function calls Sample() on all the parameter distributions and saves them.

Reimplemented from MCFitter::AtMCFitter.

Definition at line 533 of file AtMCFission.cxx.

◆ GetBeamDir()

XYZVector AtMCFission::GetBeamDir	(	AtMCResult &	res,
		const std::array< XYZVector, 2 > &	ffDir,
		double	pTrans
	)

protected

Gets the beam direction using kinematics constraints given our assumtion on the kinetic energy of the fission fragments from viola systematics, the masses of the fission fragments, and the folding angle between the fission fragments.

Definition at line 454 of file AtMCFission.cxx.

◆ GetBeamDirSameV()

XYZVector AtMCFission::GetBeamDirSameV	(	AtMCResult &	res,
		const std::array< XYZVector, 2 > &	ffDir
	)

protected

Gets the beam direction assuming the velocity of the FFs are the same (i.e. it assumes the beam direction is half way between the two FF in tha lab frame.

Definition at line 439 of file AtMCFission.cxx.

◆ GetBeamDirSample()

XYZVector AtMCFission::GetBeamDirSample	(	AtMCResult &	res,
		const std::array< XYZVector, 2 > &	ffDir
	)

protected

Definition at line 496 of file AtMCFission.cxx.

◆ GetFragmentSpecies()

std::array< Ion, 2 > AtMCFission::GetFragmentSpecies	(	AtMCResult &	res,
		const Ion &	CN
	)

protected

Definition at line 428 of file AtMCFission.cxx.

◆ GetMomDirLab()

std::array< XYZVector, 2 > AtMCFission::GetMomDirLab ( AtMCResult & res )

protected

Get the direction of the FF in the lab frame.

Definition at line 526 of file AtMCFission.cxx.

◆ GetVertex()

XYZPoint AtMCFission::GetVertex ( AtMCResult & res )

protected

Definition at line 422 of file AtMCFission.cxx.

◆ ObjectiveCharge() [1/2]

double AtMCFission::ObjectiveCharge	(	const AtFissionEvent &	expEvent,
		int	SimEventID,
		AtMCResult &	def
	)

protected

Definition at line 207 of file AtMCFission.cxx.

◆ ObjectiveCharge() [2/2]

double AtMCFission::ObjectiveCharge	(	const std::array< std::vector< double >, 2 > &	exp,
		const std::array< std::vector< double >, 2 > &	sim,
		AtMCResult &	definition
	)

protected

Definition at line 273 of file AtMCFission.cxx.

◆ ObjectiveChargeChi2()

double AtMCFission::ObjectiveChargeChi2	(	const std::vector< double > &	exp,
		const std::vector< double > &	sim,
		const double *	par
	)

static

Definition at line 224 of file AtMCFission.cxx.

◆ ObjectiveChargeChi2Norm()

double AtMCFission::ObjectiveChargeChi2Norm	(	const std::vector< double > &	exp,
		const std::vector< double > &	sim,
		const double *	par
	)

static

Definition at line 239 of file AtMCFission.cxx.

◆ ObjectiveChargeDiff2()

double AtMCFission::ObjectiveChargeDiff2	(	const std::vector< double > &	exp,
		const std::vector< double > &	sim,
		const double *	par
	)

static

Definition at line 256 of file AtMCFission.cxx.

◆ ObjectiveChargePads()

double AtMCFission::ObjectiveChargePads	(	const AtFissionEvent &	expEvent,
		int	SimEventID,
		AtMCResult &	def
	)

protected

Gets the max charge of a hit in the experimental event that is associated with a FF (Qmax) Fits the scaling parameter, A to minimize the following (which is the objective funtion)

Chi2 = 1/N \Sum (Q_exp - A*Q_sim)^2/(0.1*Qmax)^2 summing over all good pads in the experimental event.

Definition at line 129 of file AtMCFission.cxx.

◆ ObjectiveFunction()

double AtMCFission::ObjectiveFunction	(	const AtBaseEvent &	expEvent,
		int	SimEventID,
		AtMCResult &	definition
	)

overrideprotectedvirtual

This is the thing we are minimizing between events (SimEventID is index in TClonesArray)

Implements MCFitter::AtMCFitter.

Definition at line 108 of file AtMCFission.cxx.

◆ ObjectivePosition() [1/2]

double AtMCFission::ObjectivePosition	(	const AtFissionEvent &	expEvent,
		int	SimEventID
	)

protected

Definition at line 318 of file AtMCFission.cxx.

◆ ObjectivePosition() [2/2]

double AtMCFission::ObjectivePosition	(	double	uE,
		double	sE,
		double	uO,
		double	sO
	)

protected

Returns \Integral_{-inf}^{inf} (G[uO,sO,x] - G[uE,sE,x])^2 dx Assuming the Gaussain functions have the same area.

The experimental is the expected, the observed is our simulated event

Definition at line 402 of file AtMCFission.cxx.

◆ ObjectivePosition2()

double AtMCFission::ObjectivePosition2	(	double	uE,
		double	sE,
		double	uO,
		double	sO
	)

protected

Returns \Integral_{-inf}^{inf} (G[uO,sO,x] - G[uE,sE,x])^2/G[uE,sE,x] dx Assuming the Gaussain functions are normalized (same area).

The experimental is the expected, the observed is our simulated event

Definition at line 376 of file AtMCFission.cxx.

◆ ObjectivePosition3()

double AtMCFission::ObjectivePosition3	(	double	uE,
		double	sE,
		double	uO,
		double	sO
	)

protected

Returns \Integral_{-inf}^{inf} (G[uO,sO,x] - G[uE,sE,x])^2/G[uE,sE,x] dx Assuming the Gaussain functions have the same height.

The experimental is the expected, the observed is our simulated event

Definition at line 415 of file AtMCFission.cxx.

◆ ObjectivePosition4()

double AtMCFission::ObjectivePosition4	(	double	uE,
		double	sE,
		double	uO,
		double	sO
	)

protected

Returns \Integral_{-inf}^{inf} (G[uO,sO,x] - G[uE,sE,x])^2 dx Assuming the Gaussain functions have the same height.

The experimental is the expected, the observed is our simulated event

Definition at line 389 of file AtMCFission.cxx.

◆ ObjectivePositionPads()

double AtMCFission::ObjectivePositionPads	(	const AtFissionEvent &	expEvent,
		int	SimEventID
	)

protected

Definition at line 189 of file AtMCFission.cxx.

◆ SetAmp()

void AtMCFission::SetAmp ( float amp )

Definition at line 50 of file AtMCFission.cxx.

◆ SetChargeObjective()

void MCFitter::AtMCFission::SetChargeObjective ( ObjectiveFuncCharge obj )

inline

Definition at line 53 of file AtMCFission.h.

◆ SetCN()

void MCFitter::AtMCFission::SetCN ( Ion cn )

inline

Definition at line 52 of file AtMCFission.h.

◆ SetMomMagnitude()

void AtMCFission::SetMomMagnitude	(	std::array< XYZVector, 2 > &	moms,
		double	pTrans
	)

protected

Set the magnitude of the FF momenta in the lab' frame (assume the beam direction points in the Z direction). The transverse momentum (w.r.t. the beam axis) of the fission fragment in the lab frame is the same as in the CoM frame. We can calculate the magnitude of p for a FF by comparing the angle between the beam and FF.

Definition at line 562 of file AtMCFission.cxx.

◆ SetParamDistributions()

void AtMCFission::SetParamDistributions ( const AtPatternEvent & event )

overrideprotectedvirtual

Set parameter distributions (mean/spread) from the event.

Implements MCFitter::AtMCFitter.

Definition at line 73 of file AtMCFission.cxx.

◆ SetZRange()

void MCFitter::AtMCFission::SetZRange	(	int	Zmin,
		int	Zmax
	)

inline

Definition at line 55 of file AtMCFission.h.

◆ SimulateEvent()

TClonesArray AtMCFission::SimulateEvent ( AtMCResult & definition )

overrideprotectedvirtual

Simulate an event using the parameters in the passed AtMCResult class and return an array of the AtMCPoints to then digitize.

Implements MCFitter::AtMCFitter.

Definition at line 572 of file AtMCFission.cxx.

◆ violaEn()

static double MCFitter::AtMCFission::violaEn	(	int	A,
		int	Z
	)

inlinestaticprotected

Definition at line 102 of file AtMCFission.h.

Member Data Documentation

◆ fAmp

float MCFitter::AtMCFission::fAmp = 1

protected

Definition at line 46 of file AtMCFission.h.

◆ fCN

Ion MCFitter::AtMCFission::fCN {85, 204}

protected

Definition at line 33 of file AtMCFission.h.

◆ fFitAmp

bool MCFitter::AtMCFission::fFitAmp = true

protected

Definition at line 47 of file AtMCFission.h.

◆ fNominalBeamDir

XYZVector MCFitter::AtMCFission::fNominalBeamDir {11.464, 3.754, 1000}

protected

Average beam direction. We will sample the beam direction as deviations from this vector. Default value taken from Joe's plots in the overleaf on space charge

Definition at line 41 of file AtMCFission.h.

◆ fObjCharge

ObjectiveFuncCharge MCFitter::AtMCFission::fObjCharge {ObjectiveChargeChi2}

protected

Objective function to minimize the difference between A*sim and exp charge curves.

Definition at line 44 of file AtMCFission.h.

◆ fZmax

int MCFitter::AtMCFission::fZmax = 59

protected

Definition at line 37 of file AtMCFission.h.

◆ fZmin

int MCFitter::AtMCFission::fZmin = 26

protected

Definition at line 36 of file AtMCFission.h.

The documentation for this class was generated from the following files:

/github/workspace/AtReconstruction/AtFitter/AtMCFission.h
/github/workspace/AtReconstruction/AtFitter/AtMCFission.cxx

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ObjectiveFuncCharge

◆ XYZEVector

◆ XYZPoint

◆ XYZVector

Constructor & Destructor Documentation

◆ AtMCFission()

◆ ~AtMCFission()

Member Function Documentation

◆ CreateParamDistros()

◆ DefineEvent()

◆ GetBeamDir()

◆ GetBeamDirSameV()

◆ GetBeamDirSample()

◆ GetFragmentSpecies()

◆ GetMomDirLab()

◆ GetVertex()

◆ ObjectiveCharge() [1/2]

◆ ObjectiveCharge() [2/2]

◆ ObjectiveChargeChi2()

◆ ObjectiveChargeChi2Norm()

◆ ObjectiveChargeDiff2()

◆ ObjectiveChargePads()

◆ ObjectiveFunction()

◆ ObjectivePosition() [1/2]

◆ ObjectivePosition() [2/2]

◆ ObjectivePosition2()

◆ ObjectivePosition3()

◆ ObjectivePosition4()

◆ ObjectivePositionPads()

◆ SetAmp()

◆ SetChargeObjective()

◆ SetCN()

◆ SetMomMagnitude()

◆ SetParamDistributions()

◆ SetZRange()

◆ SimulateEvent()

◆ violaEn()

Member Data Documentation

◆ fAmp

◆ fCN

◆ fFitAmp

◆ fNominalBeamDir

◆ fObjCharge

◆ fZmax

◆ fZmin
