#include <AtMap.h>

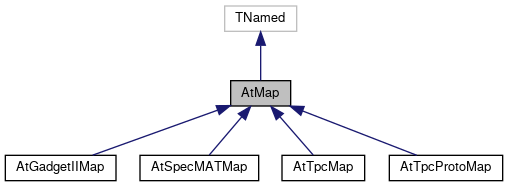

Inheritance diagram for AtMap:

[legend]

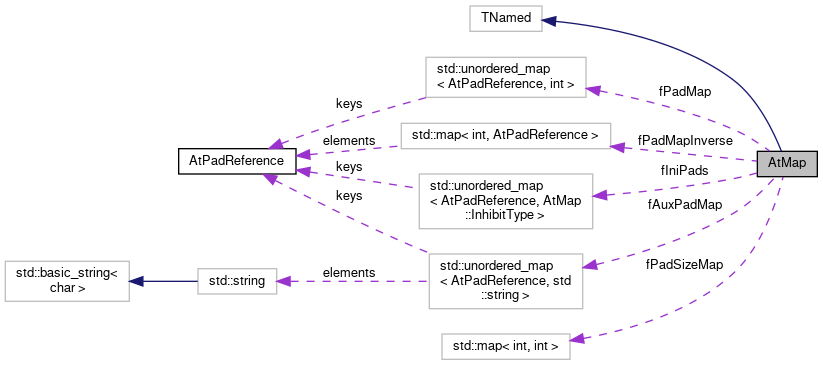

Collaboration diagram for AtMap:

[legend]

Public Types
enum	InhibitType { InhibitType::kNone = 0, InhibitType::kLowGain = 1, InhibitType::kXTalk = 2, InhibitType::kTotal = 3, InhibitType::kBadPad = 4 }

Public Member Functions
	AtMap ()

	~AtMap ()=default

virtual void	Dump ()=0

virtual void	GeneratePadPlane ()=0

virtual ROOT::Math::XYPoint	CalcPadCenter (Int_t PadRef)=0

TH2Poly *	GetPadPlane ()

virtual Int_t	BinToPad (Int_t binval)=0

UInt_t	GetNumPads () const

Int_t	GetPadNum (const AtPadReference &PadRef) const

Int_t	GetPadNum (ROOT::Math::XYPoint point)

multiarray	GetPadCoordArr ()

multiarray *	GetPadCoord ()

Bool_t	ParseXMLMap (Char_t const *xmlfile)

void	ParseMapList (TXMLNode *node)

void	ParseAtTPCMap (TXMLNode *node)

Bool_t	DumpAtTPCMap ()

AtPadReference	GetPadRef (int padNum) const

bool	AddAuxPad (const AtPadReference &ref, std::string auxName)

bool	IsAuxPad (const AtPadReference &ref) const

bool	IsFPNchannel (const AtPadReference &ref) const

AtPadReference	GetNearestFPN (int padNum) const

AtPadReference	GetNearestFPN (const AtPadReference &ref) const

std::string	GetAuxName (const AtPadReference &ref) const

void	SetDebugMode (Bool_t flag=true)

Bool_t	ParseInhibitMap (TString inimap, AtMap::InhibitType type)

void	InhibitPad (Int_t padNum, AtMap::InhibitType type)

void	InhibitPad (AtPadReference padRef, AtMap::InhibitType type)

AtMap::InhibitType	IsInhibited (Int_t PadNum)

AtMap::InhibitType	IsInhibited (AtPadReference padRef)

Int_t	GetPadSize (int padNum)

	ClassDefOverride (AtMap, 5)

Protected Types
typedef boost::multi_array< double, 3 >	multiarray

typedef multiarray::index	index

Protected Member Functions
void	drawPadPlane ()

Protected Attributes
multiarray	AtPadCoord

multiarray *	fAtPadCoordPtr {}

Bool_t	kIsParsed = false

Bool_t	kDebug = false

std::unordered_map< AtPadReference, AtMap::InhibitType >	fIniPads

TCanvas *	fPadPlaneCanvas {}

TH2Poly *	fPadPlane

UInt_t	fNumberPads {}

std::unordered_map< AtPadReference, int >	fPadMap

std::map< int, AtPadReference >	fPadMapInverse

std::unordered_map< AtPadReference, std::string >	fAuxPadMap

std::map< int, int >	fPadSizeMap

Detailed Description

Definition at line 33 of file AtMap.h.

Member Typedef Documentation

◆ index

typedef multiarray::index AtMap::index

protected

Definition at line 39 of file AtMap.h.

◆ multiarray

typedef boost::multi_array<double, 3> AtMap::multiarray

protected

Definition at line 38 of file AtMap.h.

Member Enumeration Documentation

◆ InhibitType

enum AtMap::InhibitType

strong

Enumerator
kNone
kLowGain
kXTalk
kTotal
kBadPad

Definition at line 109 of file AtMap.h.

Constructor & Destructor Documentation

◆ AtMap()

AtMap::AtMap ( )

Definition at line 43 of file AtMap.cxx.

◆ ~AtMap()

AtMap::~AtMap ( )

default

Member Function Documentation

◆ AddAuxPad()

bool AtMap::AddAuxPad	(	const AtPadReference &	ref,
		std::string	auxName
	)

Definition at line 262 of file AtMap.cxx.

◆ BinToPad()

virtual Int_t AtMap::BinToPad ( Int_t binval )

pure virtual

Implemented in AtTpcProtoMap, AtGadgetIIMap, AtSpecMATMap, and AtTpcMap.

◆ CalcPadCenter()

virtual ROOT::Math::XYPoint AtMap::CalcPadCenter ( Int_t PadRef )

pure virtual

Implemented in AtTpcProtoMap, AtGadgetIIMap, AtSpecMATMap, and AtTpcMap.

◆ ClassDefOverride()

AtMap::ClassDefOverride	(	AtMap	,
		5
	)

◆ drawPadPlane()

void AtMap::drawPadPlane ( )

protected

Definition at line 288 of file AtMap.cxx.

◆ Dump()

virtual void AtMap::Dump ( )

pure virtual

Implemented in AtTpcProtoMap, AtGadgetIIMap, AtSpecMATMap, and AtTpcMap.

◆ DumpAtTPCMap()

Bool_t AtMap::DumpAtTPCMap ( )

Definition at line 240 of file AtMap.cxx.

◆ GeneratePadPlane()

virtual void AtMap::GeneratePadPlane ( )

pure virtual

Virtual function that creates the TH2Poly that stores the pad plane geometry

Implemented in AtTpcProtoMap, AtGadgetIIMap, AtSpecMATMap, and AtTpcMap.

◆ GetAuxName()

std::string AtMap::GetAuxName ( const AtPadReference & ref ) const

Definition at line 274 of file AtMap.cxx.

◆ GetNearestFPN() [1/2]

AtPadReference AtMap::GetNearestFPN ( const AtPadReference & ref ) const

Definition at line 50 of file AtMap.cxx.

◆ GetNearestFPN() [2/2]

AtPadReference AtMap::GetNearestFPN ( int padNum ) const

Definition at line 45 of file AtMap.cxx.

◆ GetNumPads()

UInt_t AtMap::GetNumPads ( ) const

inline

Definition at line 73 of file AtMap.h.

◆ GetPadCoord()

multiarray* AtMap::GetPadCoord ( )

inline

Definition at line 79 of file AtMap.h.

◆ GetPadCoordArr()

multiarray AtMap::GetPadCoordArr ( )

inline

Definition at line 78 of file AtMap.h.

◆ GetPadNum() [1/2]

Int_t AtMap::GetPadNum ( const AtPadReference & PadRef ) const

Definition at line 89 of file AtMap.cxx.

◆ GetPadNum() [2/2]

Int_t AtMap::GetPadNum ( ROOT::Math::XYPoint point )

Definition at line 78 of file AtMap.cxx.

◆ GetPadPlane()

TH2Poly * AtMap::GetPadPlane ( )

Assumes it will generate the pad plane if it hasn't been generated already returns a clone of the internal pad plane which is owned by ROOT

Definition at line 70 of file AtMap.cxx.

◆ GetPadRef()

AtPadReference AtMap::GetPadRef ( int padNum ) const

Definition at line 281 of file AtMap.cxx.

◆ GetPadSize()

int AtMap::GetPadSize ( int padNum )

Definition at line 152 of file AtMap.cxx.

◆ InhibitPad() [1/2]

void AtMap::InhibitPad	(	AtPadReference	padRef,
		AtMap::InhibitType	type
	)

Definition at line 136 of file AtMap.cxx.

◆ InhibitPad() [2/2]

void AtMap::InhibitPad	(	Int_t	padNum,
		AtMap::InhibitType	type
	)

inline

Definition at line 96 of file AtMap.h.

◆ IsAuxPad()

bool AtMap::IsAuxPad ( const AtPadReference & ref ) const

Definition at line 270 of file AtMap.cxx.

◆ IsFPNchannel()

bool AtMap::IsFPNchannel ( const AtPadReference & ref ) const

Definition at line 65 of file AtMap.cxx.

◆ IsInhibited() [1/2]

AtMap::InhibitType AtMap::IsInhibited ( AtPadReference padRef )

Definition at line 143 of file AtMap.cxx.

◆ IsInhibited() [2/2]

AtMap::InhibitType AtMap::IsInhibited ( Int_t PadNum )

inline

Definition at line 98 of file AtMap.h.

◆ ParseAtTPCMap()

void AtMap::ParseAtTPCMap ( TXMLNode * node )

Definition at line 158 of file AtMap.cxx.

◆ ParseInhibitMap()

Bool_t AtMap::ParseInhibitMap	(	TString	inimap,
		AtMap::InhibitType	type
	)

Definition at line 111 of file AtMap.cxx.

◆ ParseMapList()

void AtMap::ParseMapList ( TXMLNode * node )

Definition at line 191 of file AtMap.cxx.

◆ ParseXMLMap()

Bool_t AtMap::ParseXMLMap ( Char_t const * xmlfile )

Definition at line 219 of file AtMap.cxx.

◆ SetDebugMode()

void AtMap::SetDebugMode ( Bool_t flag = true )

inline

Definition at line 94 of file AtMap.h.

Member Data Documentation

◆ AtPadCoord

multiarray AtMap::AtPadCoord

protected

Definition at line 41 of file AtMap.h.

◆ fAtPadCoordPtr

multiarray* AtMap::fAtPadCoordPtr {}

protected

Definition at line 42 of file AtMap.h.

◆ fAuxPadMap

std::unordered_map<AtPadReference, std::string> AtMap::fAuxPadMap

protected

Definition at line 52 of file AtMap.h.

◆ fIniPads

std::unordered_map<AtPadReference, AtMap::InhibitType> AtMap::fIniPads

protected

Definition at line 45 of file AtMap.h.

◆ fNumberPads

UInt_t AtMap::fNumberPads {}

protected

Definition at line 48 of file AtMap.h.

◆ fPadMap

std::unordered_map<AtPadReference, int> AtMap::fPadMap

protected

Definition at line 50 of file AtMap.h.

◆ fPadMapInverse

std::map<int, AtPadReference> AtMap::fPadMapInverse

protected

Definition at line 51 of file AtMap.h.

◆ fPadPlane

TH2Poly* AtMap::fPadPlane

protected

Definition at line 47 of file AtMap.h.

◆ fPadPlaneCanvas

TCanvas* AtMap::fPadPlaneCanvas {}

protected

Definition at line 46 of file AtMap.h.

◆ fPadSizeMap

std::map<int, int> AtMap::fPadSizeMap

protected

Definition at line 53 of file AtMap.h.

◆ kDebug

Bool_t AtMap::kDebug = false

protected

Definition at line 44 of file AtMap.h.

◆ kIsParsed

Bool_t AtMap::kIsParsed = false

protected

Definition at line 43 of file AtMap.h.

The documentation for this class was generated from the following files:

/github/workspace/AtMap/AtMap.h
/github/workspace/AtMap/AtMap.cxx
