#include <AtPulse.h>

Inheritance diagram for AtPulse:

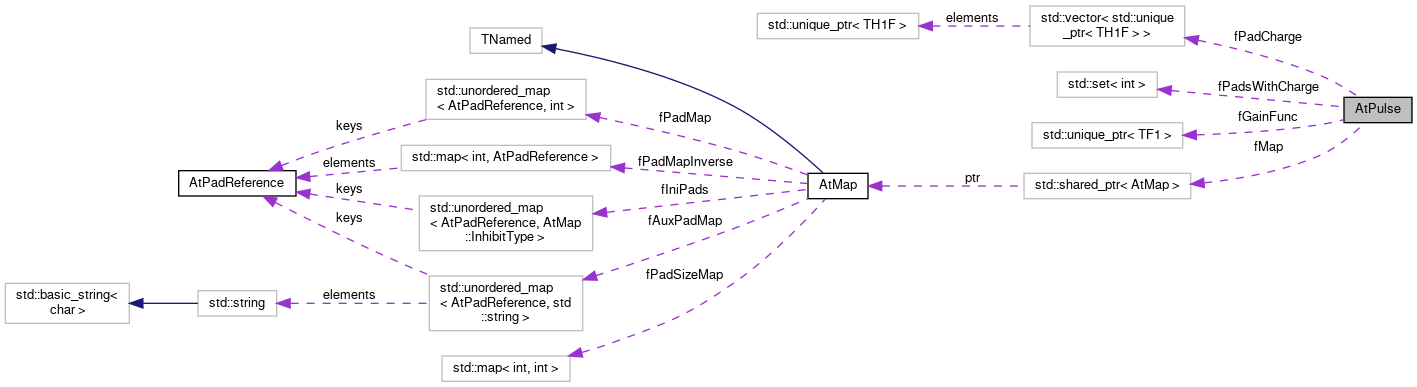

Collaboration diagram for AtPulse:

[legend]

Public Member Functions
	AtPulse (AtMapPtr map, ResponseFunc response=nullptr)

	AtPulse (const AtPulse &)

void	SetParameters (const AtDigiPar *fPar)

AtMapPtr	GetMap ()

void	UseFastGain (bool val)

void	SetNoiseSigma (double val)

void	SetSaveCharge (bool val)

void	SetDoConvolution (bool val)

AtRawEvent	GenerateEvent (std::vector< SimPointPtr > &vec)

virtual AtRawEvent	GenerateEvent (std::vector< AtSimulatedPoint * > &vec)

virtual std::shared_ptr< AtPulse >	Clone () const

Protected Types
using	AtMapPtr = std::shared_ptr< AtMap >

using	ResponseFunctionType = std::add_pointer_t< double(double)>

using	ResponseFunc = std::function< double(int, double)>
	Function (or callable object) to use as the response function. Parameters are padNum and time (us) More...

using	XYZVector = ROOT::Math::XYZVector

using	XYZPoint = ROOT::Math::XYZPoint

using	SimPointPtr = std::unique_ptr< AtSimulatedPoint >

Protected Member Functions
void	Reset ()

virtual bool	AssignElectronsToPad (AtSimulatedPoint *point)

double	GetGain (int padNum, int numElectrons)

void	GenerateTraceFromElectrons ()

void	FillPad (AtPad &pad, TH1F &hist)

void	ApplyNoise (AtPad &pad)

Protected Attributes
AtMapPtr	fMap
	AtTPC map. More...

int	fEventID = 0

double	fGain = 0
	EventID. More...

double	fLowGainFactor = 0
	Micromegas gain. More...

double	fGETGain = 0
	If pad is AtMap::kLowGain multiply gain by this factor. More...

double	fPeakingTime = 0
	GET Gain (ADC ch/electron). More...

double	fTBTime = 0
	Electronic peaking time in us. More...

int	fNumTbs {512}
	Time bucket size in us. More...

int	fTBEntrance = 0
	Number of time buckers. More...

int	fTBPadPlane = 0
	Window location in timebuckets (from config) More...

ResponseFunc	fResponse
	Pad plane location in TBs (calculated from DriftVelocity, TBEntrance, ZPadPlane. More...

bool	fUseFastGain = true
	Response function of the electronics. More...

double	fNoiseSigma = 0

bool	fSaveCharge = true
	Sigma of random gaussian noise to apply to trace. More...

bool	fDoConvolution {true}

std::vector< std::unique_ptr< TH1F > >	fPadCharge

std::set< int >	fPadsWithCharge

std::unique_ptr< TF1 >	fGainFunc

double	fAvgGainDeviation {}

Detailed Description

Definition at line 22 of file AtPulse.h.

Member Typedef Documentation

◆ AtMapPtr

using AtPulse::AtMapPtr = std::shared_ptr<AtMap>

protected

Definition at line 24 of file AtPulse.h.

◆ ResponseFunc

using AtPulse::ResponseFunc = std::function<double(int, double)>

protected

Function (or callable object) to use as the response function. Parameters are padNum and time (us)

Definition at line 27 of file AtPulse.h.

◆ ResponseFunctionType

using AtPulse::ResponseFunctionType = std::add_pointer_t<double(double)>

protected

Definition at line 25 of file AtPulse.h.

◆ SimPointPtr

using AtPulse::SimPointPtr = std::unique_ptr<AtSimulatedPoint>

protected

Definition at line 30 of file AtPulse.h.

◆ XYZPoint

using AtPulse::XYZPoint = ROOT::Math::XYZPoint

protected

Definition at line 29 of file AtPulse.h.

◆ XYZVector

using AtPulse::XYZVector = ROOT::Math::XYZVector

protected

Definition at line 28 of file AtPulse.h.

Constructor & Destructor Documentation

◆ AtPulse() [1/2]

AtPulse::AtPulse	(	AtMapPtr	map,
		ResponseFunc	response = `nullptr`
	)

Definition at line 27 of file AtPulse.cxx.

◆ AtPulse() [2/2]

AtPulse::AtPulse ( const AtPulse & other )

Definition at line 34 of file AtPulse.cxx.

Member Function Documentation

◆ ApplyNoise()

void AtPulse::ApplyNoise ( AtPad & pad )

protected

Definition at line 118 of file AtPulse.cxx.

◆ AssignElectronsToPad()

bool AtPulse::AssignElectronsToPad ( AtSimulatedPoint * point )

protectedvirtual

Assign electons to pad and apply the gain from the umegas (including gain reduction from smartzap) Returns if we were able to add the point to a pad.

Reimplemented in AtPulseGADGET, and AtPulseLine.

Definition at line 182 of file AtPulse.cxx.

◆ Clone()

virtual std::shared_ptr<AtPulse> AtPulse::Clone ( ) const

inlinevirtual

Reimplemented in AtPulseGADGET, and AtPulseLine.

Definition at line 70 of file AtPulse.h.

◆ FillPad()

void AtPulse::FillPad	(	AtPad &	pad,
		TH1F &	hist
	)

protected

Definition at line 82 of file AtPulse.cxx.

◆ GenerateEvent() [1/2]

AtRawEvent AtPulse::GenerateEvent ( std::vector< AtSimulatedPoint * > & vec )

virtual

Reimplemented in AtPulseGADGET.

Definition at line 62 of file AtPulse.cxx.

◆ GenerateEvent() [2/2]

AtRawEvent AtPulse::GenerateEvent ( std::vector< SimPointPtr > & vec )

Definition at line 56 of file AtPulse.cxx.

◆ GenerateTraceFromElectrons()

void AtPulse::GenerateTraceFromElectrons ( )

protected

◆ GetGain()

double AtPulse::GetGain	(	int	padNum,
		int	numElectrons
	)

protected

Definition at line 205 of file AtPulse.cxx.

◆ GetMap()

AtMapPtr AtPulse::GetMap ( )

inline

Definition at line 61 of file AtPulse.h.

◆ Reset()

void AtPulse::Reset ( )

protected

Definition at line 127 of file AtPulse.cxx.

◆ SetDoConvolution()

void AtPulse::SetDoConvolution ( bool val )

inline

Definition at line 65 of file AtPulse.h.

◆ SetNoiseSigma()

void AtPulse::SetNoiseSigma ( double val )

inline

Definition at line 63 of file AtPulse.h.

◆ SetParameters()

void AtPulse::SetParameters ( const AtDigiPar * fPar )

Definition at line 133 of file AtPulse.cxx.

◆ SetSaveCharge()

void AtPulse::SetSaveCharge ( bool val )

inline

Definition at line 64 of file AtPulse.h.

◆ UseFastGain()

void AtPulse::UseFastGain ( bool val )

inline

Definition at line 62 of file AtPulse.h.

Member Data Documentation

◆ fAvgGainDeviation

double AtPulse::fAvgGainDeviation {}

protected

Definition at line 54 of file AtPulse.h.

◆ fDoConvolution

bool AtPulse::fDoConvolution {true}

protected

Definition at line 48 of file AtPulse.h.

◆ fEventID

int AtPulse::fEventID = 0

protected

Definition at line 34 of file AtPulse.h.

◆ fGain

double AtPulse::fGain = 0

protected

EventID.

Definition at line 35 of file AtPulse.h.

◆ fGainFunc

std::unique_ptr<TF1> AtPulse::fGainFunc

protected

Definition at line 53 of file AtPulse.h.

◆ fGETGain

double AtPulse::fGETGain = 0

protected

If pad is AtMap::kLowGain multiply gain by this factor.

Definition at line 37 of file AtPulse.h.

◆ fLowGainFactor

double AtPulse::fLowGainFactor = 0

protected

Micromegas gain.

Definition at line 36 of file AtPulse.h.

◆ fMap

AtMapPtr AtPulse::fMap

protected

AtTPC map.

Definition at line 32 of file AtPulse.h.

◆ fNoiseSigma

double AtPulse::fNoiseSigma = 0

protected

Definition at line 46 of file AtPulse.h.

◆ fNumTbs

int AtPulse::fNumTbs {512}

protected

Time bucket size in us.

Definition at line 40 of file AtPulse.h.

◆ fPadCharge

std::vector<std::unique_ptr<TH1F> > AtPulse::fPadCharge

protected

Definition at line 50 of file AtPulse.h.

◆ fPadsWithCharge

std::set<int> AtPulse::fPadsWithCharge

protected

Definition at line 51 of file AtPulse.h.

◆ fPeakingTime

double AtPulse::fPeakingTime = 0

protected

GET Gain (ADC ch/electron).

Definition at line 38 of file AtPulse.h.

◆ fResponse

ResponseFunc AtPulse::fResponse

protected

Pad plane location in TBs (calculated from DriftVelocity, TBEntrance, ZPadPlane.

Definition at line 44 of file AtPulse.h.

◆ fSaveCharge

bool AtPulse::fSaveCharge = true

protected

Sigma of random gaussian noise to apply to trace.

Definition at line 47 of file AtPulse.h.

◆ fTBEntrance

int AtPulse::fTBEntrance = 0

protected

Number of time buckers.

Definition at line 41 of file AtPulse.h.

◆ fTBPadPlane

int AtPulse::fTBPadPlane = 0

protected

Window location in timebuckets (from config)

Definition at line 42 of file AtPulse.h.

◆ fTBTime

double AtPulse::fTBTime = 0

protected

Electronic peaking time in us.

Definition at line 39 of file AtPulse.h.

◆ fUseFastGain

bool AtPulse::fUseFastGain = true

protected

Response function of the electronics.

Definition at line 45 of file AtPulse.h.

The documentation for this class was generated from the following files:

/github/workspace/AtDigitization/AtPulse.h
/github/workspace/AtDigitization/AtPulse.cxx
