Sample AtHits according to charge for Y shaped tracks. More...
#include <AtY.h>
Inheritance diagram for RandomSample::AtY:

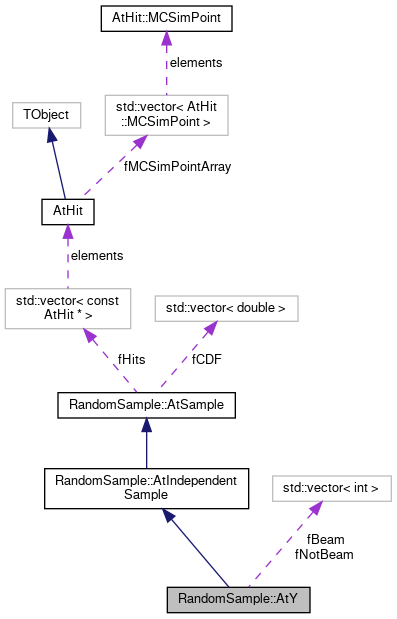

Collaboration diagram for RandomSample::AtY:
Public Member Functions | |
| virtual std::vector< AtHit > | SampleHits (int N) override |
| Sample hits (AtHit) from fHits. More... | |
| virtual void | SetHitsToSample (const std::vector< const AtHit * > &hits) override |
| virtual std::vector< double > | PDF (const AtHit &hit) override |
 Public Member Functions inherited from RandomSample::AtIndependentSample | |
| virtual | ~AtIndependentSample ()=default |
| Public Member Functions inherited from RandomSample::AtSample | |
| virtual | ~AtSample ()=default |
| std::vector< ROOT::Math::XYZPoint > | SamplePoints (int N) |
| Sample spacial locations (XYZPoints) from fHits. More... | |
| void | SetHitsToSample (const std::vector< HitPtr > &hits) |
| void | SetHitsToSample (const std::vector< AtHit > &hits) |
| void | SetSampleWithReplacement (bool val) |
Protected Attributes | |
| std::vector< int > | fNotBeam |
| std::vector< int > | fBeam |
| double | fBeamRadius {40} |
| Protected Attributes inherited from RandomSample::AtSample | |
| const std::vector< const AtHit * > * | fHits |
| std::vector< double > | fCDF |
| bool | fWithReplacement {false} |
Additional Inherited Members | |
| Protected Types inherited from RandomSample::AtSample | |
| using | HitPtr = std::unique_ptr< AtHit > |
| Protected Member Functions inherited from RandomSample::AtSample | |
| void | FillCDF () |
| std::vector< int > | sampleIndicesFromCDF (int N, std::vector< int > vetoed={}) |
| int | getIndexFromCDF (double r, double rmCFD, std::vector< int > vetoed) |
| Get the index i where CDF[i] >= r and CDF[i-1] < r. More... | |
| double | getPDFfromCDF (int index) |
| Static Protected Member Functions inherited from RandomSample::AtSample | |
| template<typename T > | |
| static bool | isInVector (T val, std::vector< T > vec) |
Detailed Description
Sample AtHits according to charge for Y shaped tracks.
Two points sampled from the beam region and two outside the beam region. Points outside the beam region have to be closer to the pad plane than the points sampled in the beam region
Member Function Documentation
◆ PDF()
|
inlineoverridevirtual |
Computes the unnormalized marginal PDFs at the hit.
For example, a charge-weighted and spacial gaussian would looke like return {charge, gaussian_pdf(distance, sigma)};
- Returns
- vector where each element is a different maginal pdf
Implements RandomSample::AtIndependentSample.
◆ SampleHits()
|
overridevirtual |
Sample hits (AtHit) from fHits.
Assumes fCDF is already setup and we are just using it.
Reimplemented from RandomSample::AtSample.
◆ SetHitsToSample()
|
overridevirtual |
Reimplemented from RandomSample::AtIndependentSample.
Member Data Documentation
◆ fBeam
◆ fBeamRadius
◆ fNotBeam
The documentation for this class was generated from the following files:
