RandomSample::AtSample Class Reference

Interface for randomly sampling AtHits. More...

#include <AtSample.h>

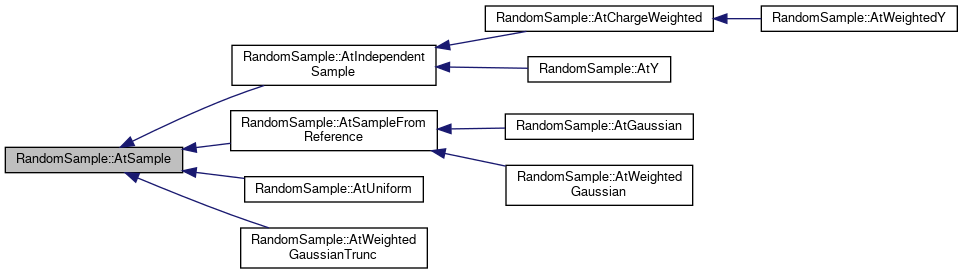

Inheritance diagram for RandomSample::AtSample:

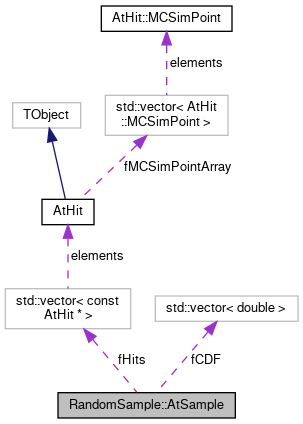

Collaboration diagram for RandomSample::AtSample:

Public Member Functions
virtual	~AtSample ()=default
virtual std::vector< AtHit >	SampleHits (int N)
	Sample hits (AtHit) from fHits. More...
std::vector< ROOT::Math::XYZPoint >	SamplePoints (int N)
	Sample spacial locations (XYZPoints) from fHits. More...
virtual void	SetHitsToSample (const std::vector< const AtHit * > &hits)=0
void	SetHitsToSample (const std::vector< HitPtr > &hits)
void	SetHitsToSample (const std::vector< AtHit > &hits)
void	SetSampleWithReplacement (bool val)

Protected Types
using	HitPtr = std::unique_ptr< AtHit >

Protected Member Functions
virtual std::vector< double >	PDF (const AtHit &hit)=0
void	FillCDF ()
std::vector< int >	sampleIndicesFromCDF (int N, std::vector< int > vetoed={})
int	getIndexFromCDF (double r, double rmCFD, std::vector< int > vetoed)
	Get the index i where CDF[i] >= r and CDF[i-1] < r. More...
double	getPDFfromCDF (int index)

Static Protected Member Functions
template<typename T >
static bool	isInVector (T val, std::vector< T > vec)

Protected Attributes
const std::vector< const AtHit * > *	fHits
std::vector< double >	fCDF
bool	fWithReplacement {false}

Detailed Description

Interface for randomly sampling AtHits.

Samples according to the cumulitive distribution function fCDF.

Definition at line 35 of file AtSample.h.

Member Typedef Documentation

HitPtr

using RandomSample::AtSample::HitPtr = std::unique_ptr<AtHit>

protected

Definition at line 37 of file AtSample.h.

Constructor & Destructor Documentation

~AtSample()

virtual RandomSample::AtSample::~AtSample ( )

virtualdefault

Member Function Documentation

FillCDF()

void AtSample::FillCDF ( )

protected

Fill the cumulitive distribution function to sample using the marginal PDFs returned by the function PDF(const AtHit &hit) from every entry in the vector fHits.

Each marginal PDF is normalized to construct the final CDF. Assumes the marginal PDFs are independent (i.e. the joint PDF is just the product of all marginal PDFs)

Definition at line 115 of file AtSample.cxx.

getIndexFromCDF()

int AtSample::getIndexFromCDF ( double  r, double  rmCFD, std::vector< int >  vetoed  )

protected

Get the index i where CDF[i] >= r and CDF[i-1] < r.

Loop through fCDF, skipping any index in vetoed, for the index that corresponds to r So need to track what indices are not allowed (vetoed) and the amount of the CDF that has been removed (i.e. sum of PDFs for all removed indices). (rmCDF) The new CDF is then oldCDF/(1-rmCDF) We then need to loop through CDF and look for index where CDF[i] >= r

Parameters

[in]	r	Random number between [0,1) to compare to fCDF
[in]	vetoed	Indices to ignore while searching fCDF

Definition at line 54 of file AtSample.cxx.

getPDFfromCDF()

double AtSample::getPDFfromCDF ( int  index )

protected

Definition at line 104 of file AtSample.cxx.

isInVector()

template<typename T >

static bool RandomSample::AtSample::isInVector ( T  val, std::vector< T >  vec  )

inlinestaticprotected

Definition at line 72 of file AtSample.h.

PDF()

virtual std::vector<double> RandomSample::AtSample::PDF ( const AtHit &  hit )

protectedpure virtual

Computes the unnormalized marginal PDFs at the hit.

For example, a charge-weighted and spacial gaussian would looke like return {charge, gaussian_pdf(distance, sigma)};

Returns

vector where each element is a different maginal pdf

Implemented in RandomSample::AtIndependentSample, RandomSample::AtWeightedGaussian, RandomSample::AtY, RandomSample::AtGaussian, RandomSample::AtUniform, RandomSample::AtWeightedGaussianTrunc, and RandomSample::AtChargeWeighted.

SampleHits()

std::vector< AtHit > AtSample::SampleHits ( int  N )

virtual

Sample hits (AtHit) from fHits.

Assumes fCDF is already setup and we are just using it.

Reimplemented in RandomSample::AtY, RandomSample::AtSampleFromReference, RandomSample::AtWeightedY, RandomSample::AtUniform, and RandomSample::AtWeightedGaussianTrunc.

Definition at line 20 of file AtSample.cxx.

sampleIndicesFromCDF()

std::vector< int > AtSample::sampleIndicesFromCDF ( int  N, std::vector< int >  vetoed = {}  )

protected

Get a list of indices aampled according to the constructed fCDF (assumes FillCDF() has been called already)

Parameters

[in]	N	number of pcoints to sample. If sampling without replacement this should be small compared to the total number of hits in the hit array.
[in]	vetoed	Indices to not sample (even if sampling with replacement).

Definition at line 77 of file AtSample.cxx.

SamplePoints()

std::vector< ROOT::Math::XYZPoint > AtSample::SamplePoints

(

int

N

)

Sample spacial locations (XYZPoints) from fHits.

Calls SampleHits(int N).

Definition at line 34 of file AtSample.cxx.

SetHitsToSample() [1/3]

void AtSample::SetHitsToSample

(

const std::vector< AtHit > &

hits

)

Definition at line 151 of file AtSample.cxx.

SetHitsToSample() [2/3]

virtual void RandomSample::AtSample::SetHitsToSample ( const std::vector< const AtHit * > &  hits )

pure virtual

Implemented in RandomSample::AtY, RandomSample::AtWeightedGaussian, RandomSample::AtSampleFromReference, RandomSample::AtWeightedY, RandomSample::AtIndependentSample, RandomSample::AtUniform, and RandomSample::AtWeightedGaussianTrunc.

SetHitsToSample() [3/3]

void AtSample::SetHitsToSample

(

const std::vector< HitPtr > &

hits

)

Definition at line 146 of file AtSample.cxx.

SetSampleWithReplacement()

void RandomSample::AtSample::SetSampleWithReplacement ( bool  val )

inline

Definition at line 52 of file AtSample.h.

Member Data Documentation

fCDF

std::vector<double> RandomSample::AtSample::fCDF

protected

Definition at line 39 of file AtSample.h.

fHits

const std::vector<const AtHit *>* RandomSample::AtSample::fHits

protected

Definition at line 38 of file AtSample.h.

fWithReplacement

bool RandomSample::AtSample::fWithReplacement {false}

protected

Definition at line 40 of file AtSample.h.

---

The documentation for this class was generated from the following files:

• /github/workspace/AtTools/AtHitSampling/AtSample.h
• /github/workspace/AtTools/AtHitSampling/AtSample.cxx
