#include "lmmin.h"
#include <cfloat>
#include <cmath>
#include <cstdio>
#include <cstdlib>

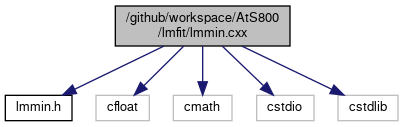

Include dependency graph for lmmin.cxx:

Macros
#define	LM_MACHEP DBL_EPSILON /* resolution of arithmetic */

#define	LM_DWARF DBL_MIN /* smallest nonzero number */

#define	LM_SQRT_DWARF sqrt(DBL_MIN) /* square should not underflow */

#define	LM_SQRT_GIANT sqrt(DBL_MAX) /* square should not overflow */

#define	LM_USERTOL 30 * LM_MACHEP /* users are recommended to require this */

#define	MIN(a, b) (((a) <= (b)) ? (a) : (b))

#define	MAX(a, b) (((a) >= (b)) ? (a) : (b))

#define	SQR(x) (x) * (x)

Functions
void	lm_printout_std (int n_par, const double par, int m_dat, const void data, const double *fvec, int printflags, int iflag, int iter, int nfev)

void	lmmin (int n_par, double par, int m_dat, const void data, void(evaluate)(const double par, int m_dat, const void data, double fvec, int info), const lm_control_struct control, lm_status_struct status, void(printout)(int n_par, const double par, int m_dat, const void data, const double *fvec, int printflags, int iflag, int iter, int nfev))

void	lm_lmpar (int n, double r, int ldr, int ipvt, double diag, double qtb, double delta, double par, double x, double sdiag, double aux, double *xdi)

void	lm_qrfac (int m, int n, double a, int pivot, int ipvt, double rdiag, double acnorm, double *wa)

void	lm_qrsolv (int n, double r, int ldr, int ipvt, double diag, double qtb, double x, double sdiag, double *wa)

void	lm_lmdif (int m, int n, double x, double fvec, double ftol, double xtol, double gtol, int maxfev, double epsfcn, double diag, int mode, double factor, int info, int nfev, double fjac, int ipvt, double qtf, double wa1, double wa2, double wa3, double wa4, void(evaluate)(const double par, int m_dat, const void data, double fvec, int info), void(printout)(int n_par, const double par, int m_dat, const void data, const double fvec, int printflags, int iflag, int iter, int nfev), int printflags, const void data)

double	lm_enorm (int n, const double *x)

Variables
const lm_control_struct	lm_control_double = {LM_USERTOL, LM_USERTOL, LM_USERTOL, LM_USERTOL, 100., 100, 1, 0}

const lm_control_struct	lm_control_float = {1.e-7, 1.e-7, 1.e-7, 1.e-7, 100., 100, 0, 0}

const char *	lm_infmsg []

const char *	lm_shortmsg []

Macro Definition Documentation

◆ LM_DWARF

#define LM_DWARF DBL_MIN /* smallest nonzero number */

Definition at line 40 of file lmmin.cxx.

◆ LM_MACHEP

#define LM_MACHEP DBL_EPSILON /* resolution of arithmetic */

Definition at line 39 of file lmmin.cxx.

◆ LM_SQRT_DWARF

#define LM_SQRT_DWARF sqrt(DBL_MIN) /* square should not underflow */

Definition at line 41 of file lmmin.cxx.

◆ LM_SQRT_GIANT

#define LM_SQRT_GIANT sqrt(DBL_MAX) /* square should not overflow */

Definition at line 42 of file lmmin.cxx.

◆ LM_USERTOL

#define LM_USERTOL 30 * LM_MACHEP /* users are recommended to require this */

Definition at line 43 of file lmmin.cxx.

◆ MAX

#define MAX	(	a,
		b
	)	(((a) >= (b)) ? (a) : (b))

Definition at line 205 of file lmmin.cxx.

◆ MIN

#define MIN	(	a,
		b
	)	(((a) <= (b)) ? (a) : (b))

Definition at line 204 of file lmmin.cxx.

◆ SQR

#define SQR ( x ) (x) * (x)

Definition at line 206 of file lmmin.cxx.

Function Documentation

◆ lm_enorm()

double lm_enorm	(	int	n,
		const double *	x
	)

sum squares.

calculation of norm.

Definition at line 1206 of file lmmin.cxx.

◆ lm_lmdif()

void lm_lmdif	(	int	m,
		int	n,
		double *	x,
		double *	fvec,
		double	ftol,
		double	xtol,
		double	gtol,
		int	maxfev,
		double	epsfcn,
		double *	diag,
		int	mode,
		double	factor,
		int *	info,
		int *	nfev,
		double *	fjac,
		int *	ipvt,
		double *	qtf,
		double *	wa1,
		double *	wa2,
		double *	wa3,
		double *	wa4,
		void()(const double par, int m_dat, const void data, double fvec, int *info)	evaluate,
		void()(int n_par, const double par, int m_dat, const void data, const double fvec, int printflags, int iflag, int iter, int nfev)	printout,
		int	printflags,
		const void *	data
	)

Legacy low-level interface.

Definition at line 207 of file lmmin.cxx.

◆ lm_lmpar()

void lm_lmpar	(	int	n,
		double *	r,
		int	ldr,
		int *	ipvt,
		double *	diag,
		double *	qtb,
		double	delta,
		double *	par,
		double *	x,
		double *	sdiag,
		double *	aux,
		double *	xdi
	)

evaluate the function at the current value of par.

if the function is small enough, accept the current value of par. Also test for the exceptional cases where parl is zero or the number of iterations has reached 10.

compute the Newton correction.

depending on the sign of the function, update parl or paru.

compute an improved estimate for par.

Definition at line 664 of file lmmin.cxx.

◆ lm_printout_std()

void lm_printout_std	(	int	n_par,
		const double *	par,
		int	m_dat,
		const void *	data,
		const double *	fvec,
		int	printflags,
		int	iflag,
		int	iter,
		int	nfev
	)

Definition at line 86 of file lmmin.cxx.

◆ lm_qrfac()

void lm_qrfac	(	int	m,
		int	n,
		double *	a,
		int	pivot,
		int *	ipvt,
		double *	rdiag,
		double *	acnorm,
		double *	wa
	)

bring the column of largest norm into the pivot position.

compute the Householder transformation to reduce the j-th column of a to a multiple of the j-th unit vector.

apply the transformation to the remaining columns and update the norms.

Definition at line 891 of file lmmin.cxx.

◆ lm_qrsolv()

void lm_qrsolv	(	int	n,
		double *	r,
		int	ldr,
		int *	ipvt,
		double *	diag,
		double *	qtb,
		double *	x,
		double *	sdiag,
		double *	wa
	)

determine a Givens rotation which eliminates the appropriate element in the current row of d.

compute the modified diagonal element of r and the modified element of ((q transpose)*b,0).

accumulate the tranformation in the row of s.

store the diagonal element of s and restore the corresponding diagonal element of r.

Definition at line 1037 of file lmmin.cxx.

◆ lmmin()

void lmmin	(	int	n_par,
		double *	par,
		int	m_dat,
		const void *	data,
		void()(const double par, int m_dat, const void data, double fvec, int *info)	evaluate,
		const lm_control_struct *	control,
		lm_status_struct *	status,
		void()(int n_par, const double par, int m_dat, const void data, const double fvec, int printflags, int iflag, int iter, int nfev)	printout
	)

Definition at line 135 of file lmmin.cxx.

Variable Documentation

◆ lm_control_double

const lm_control_struct lm_control_double = {LM_USERTOL, LM_USERTOL, LM_USERTOL, LM_USERTOL, 100., 100, 1, 0}

Definition at line 58 of file lmmin.cxx.

◆ lm_control_float

const lm_control_struct lm_control_float = {1.e-7, 1.e-7, 1.e-7, 1.e-7, 100., 100, 0, 0}

Definition at line 59 of file lmmin.cxx.

◆ lm_infmsg

const char* lm_infmsg[]

Initial value:

= {"success (sum of squares below underflow limit)",
                           "success (the relative error in the sum of squares is at most tol)",
                           "success (the relative error between x and the solution is at most tol)",
                           "success (both errors are at most tol)",
                           "trapped by degeneracy (fvec is orthogonal to the columns of the jacobian)",
                           "timeout (number of calls to fcn has reached maxcall*(n+1))",
                           "failure (ftol<tol: cannot reduce sum of squares any further)",
                           "failure (xtol<tol: cannot improve approximate solution any further)",
                           "failure (gtol<tol: cannot improve approximate solution any further)",
                           "exception (not enough memory)",
                           "fatal coding error (improper input parameters)",
                           "exception (break requested within function evaluation)"}

Definition at line 65 of file lmmin.cxx.

◆ lm_shortmsg

const char* lm_shortmsg[]
