S800 Class Reference

#include <S800.h>

Inheritance diagram for S800:

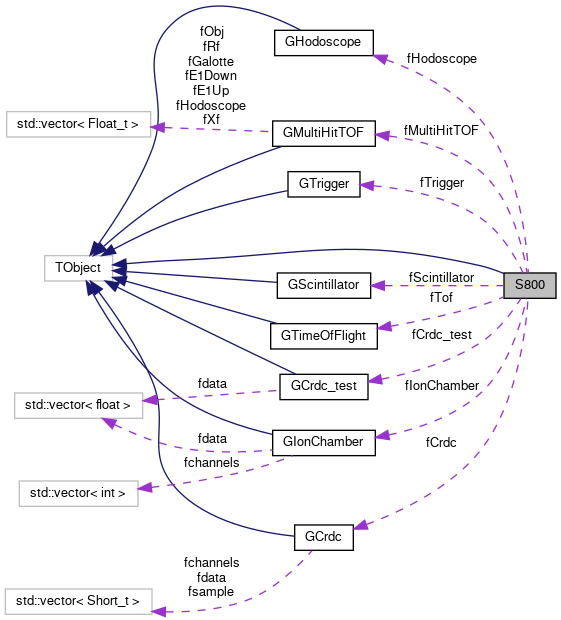

Collaboration diagram for S800:

Public Member Functions
	S800 ()
void	Clear ()
void	SetTS (long long int ts)
void	SetInternalTS (long long int ts)
void	SetEvtNr (long long int nr)
GTimeOfFlight *	GetTimeOfFlight ()
GTrigger *	GetTrigger ()
GScintillator *	GetScintillator (int id)
GIonChamber *	GetIonChamber ()
GHodoscope *	GetHodoscope (int id)
GCrdc *	GetCrdc (int id)
long long int	GetTS ()
long long int	GetInternalTS ()
long long int	GetEvtNr ()
GCrdc_test *	GetCrdc_test ()
GMultiHitTOF *	GetMultiHitTOF ()
int	DecodeS800 (unsigned short *pevent, unsigned short twords)

Protected Member Functions
unsigned short *	DecodeS800Crdc (unsigned short *pevent, int id)
unsigned short *	DecodeS800CrdcRaw (unsigned short *pevent, int id)
unsigned short *	DecodeS800Scintillator (unsigned short *pevent, unsigned short updown, int id)
unsigned short *	DecodeS800IonChamber (unsigned short *pevent)
unsigned short *	DecodeS800TimeOfFlight (unsigned short *pevent)
unsigned short *	DecodeS800Trigger (unsigned short *pevent)
unsigned short *	DecodeS800HodoScope (unsigned short *pevent)
unsigned short *	DecodeS800NewMultiHitTDC (unsigned short *pevent)
	ClassDef (S800, 1)

Protected Attributes
GTimeOfFlight	fTof
GTrigger	fTrigger
GScintillator	fScintillator [3]
GIonChamber	fIonChamber
GHodoscope	fHodoscope [32]
GCrdc	fCrdc [2]
GMultiHitTOF	fMultiHitTOF
GCrdc_test	fCrdc_test
long long int	fts
long long int	fits
long long int	fevtnr

Detailed Description

Raw data structure for S800 as a whole. Contains instances of GTimeOfFlight GTrigger GScintillator GIonChamber GHodoscope. S800 class will be a copy of the raw event information in the data stream.

Contains methods to unpack the data for each of the S800's dectors for NSCL DAQ 10.02 format

Definition at line 338 of file S800.h.

Constructor & Destructor Documentation

S800()

S800::S800 ( )

inline

Definition at line 340 of file S800.h.

Member Function Documentation

ClassDef()

S800::ClassDef ( S800  , 1    )

protected

Clear()

void S800::Clear ( )

inline

Definition at line 341 of file S800.h.

DecodeS800()

int S800::DecodeS800	(	unsigned short *	pevent,
		unsigned short	twords
	)

Definition at line 7 of file S800.cxx.

DecodeS800Crdc()

unsigned short * S800::DecodeS800Crdc ( unsigned short *  pevent, int  id  )

protected

Definition at line 254 of file S800.cxx.

DecodeS800CrdcRaw()

unsigned short * S800::DecodeS800CrdcRaw ( unsigned short *  pevent, int  id  )

protected

Definition at line 305 of file S800.cxx.

DecodeS800HodoScope()

unsigned short * S800::DecodeS800HodoScope ( unsigned short *  pevent )

protected

Definition at line 204 of file S800.cxx.

DecodeS800IonChamber()

unsigned short * S800::DecodeS800IonChamber ( unsigned short *  pevent )

protected

Definition at line 275 of file S800.cxx.

DecodeS800NewMultiHitTDC()

unsigned short * S800::DecodeS800NewMultiHitTDC ( unsigned short *  pevent )

protected

Definition at line 427 of file S800.cxx.

DecodeS800Scintillator()

unsigned short * S800::DecodeS800Scintillator ( unsigned short *  pevent, unsigned short  updown, int  id  )

protected

Definition at line 184 of file S800.cxx.

DecodeS800TimeOfFlight()

unsigned short * S800::DecodeS800TimeOfFlight ( unsigned short *  pevent )

protected

Definition at line 123 of file S800.cxx.

DecodeS800Trigger()

unsigned short * S800::DecodeS800Trigger ( unsigned short *  pevent )

protected

Definition at line 158 of file S800.cxx.

GetCrdc()

GCrdc* S800::GetCrdc ( int  id )

inline

Definition at line 364 of file S800.h.

GetCrdc_test()

GCrdc_test* S800::GetCrdc_test ( )

inline

Definition at line 369 of file S800.h.

GetEvtNr()

long long int S800::GetEvtNr ( )

inline

Definition at line 367 of file S800.h.

GetHodoscope()

GHodoscope* S800::GetHodoscope ( int  id )

inline

Definition at line 363 of file S800.h.

GetInternalTS()

long long int S800::GetInternalTS ( )

inline

Definition at line 366 of file S800.h.

GetIonChamber()

GIonChamber* S800::GetIonChamber ( )

inline

Definition at line 362 of file S800.h.

GetMultiHitTOF()

GMultiHitTOF* S800::GetMultiHitTOF ( )

inline

Definition at line 371 of file S800.h.

GetScintillator()

GScintillator* S800::GetScintillator ( int  id )

inline

Definition at line 361 of file S800.h.

GetTimeOfFlight()

GTimeOfFlight* S800::GetTimeOfFlight ( )

inline

Definition at line 359 of file S800.h.

GetTrigger()

GTrigger* S800::GetTrigger ( )

inline

Definition at line 360 of file S800.h.

GetTS()

long long int S800::GetTS ( )

inline

Definition at line 365 of file S800.h.

SetEvtNr()

void S800::SetEvtNr ( long long int  nr )

inline

Definition at line 358 of file S800.h.

SetInternalTS()

void S800::SetInternalTS ( long long int  ts )

inline

Definition at line 357 of file S800.h.

SetTS()

void S800::SetTS ( long long int  ts )

inline

Definition at line 356 of file S800.h.

Member Data Documentation

fCrdc

GCrdc S800::fCrdc[2]

protected

Definition at line 380 of file S800.h.

fCrdc_test

GCrdc_test S800::fCrdc_test

protected

Definition at line 383 of file S800.h.

fevtnr

long long int S800::fevtnr

protected

Definition at line 387 of file S800.h.

fHodoscope

GHodoscope S800::fHodoscope[32]

protected

Definition at line 379 of file S800.h.

fIonChamber

GIonChamber S800::fIonChamber

protected

Definition at line 378 of file S800.h.

fits

long long int S800::fits

protected

Definition at line 386 of file S800.h.

fMultiHitTOF

GMultiHitTOF S800::fMultiHitTOF

protected

Definition at line 381 of file S800.h.

fScintillator

GScintillator S800::fScintillator[3]

protected

Definition at line 377 of file S800.h.

fTof

GTimeOfFlight S800::fTof

protected

Definition at line 375 of file S800.h.

fTrigger

GTrigger S800::fTrigger

protected

Definition at line 376 of file S800.h.

fts

long long int S800::fts

protected

Definition at line 385 of file S800.h.

---

The documentation for this class was generated from the following files:

• /github/workspace/AtS800/S800.h
• /github/workspace/AtS800/S800.cxx
