AtTools::AtELossTable Class Reference

#include <AtELossTable.h>

Inheritance diagram for AtTools::AtELossTable:

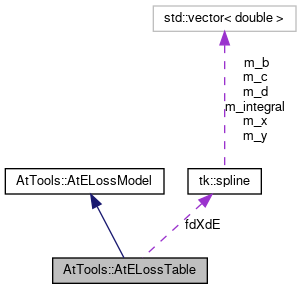

Collaboration diagram for AtTools::AtELossTable:

Public Member Functions
	AtELossTable (double density=0)
	AtELossTable (const std::vector< double > &energy, const std::vector< double > &dEdX, double density=0)
void	SetDistanceError (double val)
	Set error in particle range when calculating energy losses. More...
void	LoadSrimTable (std::string fileName)
void	LoadLiseTable (std::string fileName, double mass, double density, int column=2)
virtual double	GetdEdx (double energy) const override
virtual double	GetRange (double energyIni, double energyFin=0) const override
virtual double	GetEnergyLoss (double energyIni, double distance) const override
virtual double	GetEnergy (double energyIni, double distance) const override
double	GetEnergyOld (double energyIni, double distance) const
Public Member Functions inherited from AtTools::AtELossModel
	AtELossModel (double density)
virtual	~AtELossModel ()=default
void	SetDensity (double density)

Protected Attributes
tk::spline	fdXdE
double	fDistErr {1e-4}
Protected Attributes inherited from AtTools::AtELossModel
double	fDensityIni
double	fDensity
double	fdEdxScale {1}

Additional Inherited Members
Protected Member Functions inherited from AtTools::AtELossModel
void	SetIniDensity (double density)

Detailed Description

Definition at line 13 of file AtELossTable.h.

Constructor & Destructor Documentation

AtELossTable() [1/2]

AtTools::AtELossTable::AtELossTable ( double  density = 0 )

inline

Definition at line 20 of file AtELossTable.h.

AtELossTable() [2/2]

AtTools::AtELossTable::AtELossTable	(	const std::vector< double > &	energy,
		const std::vector< double > &	dEdX,
		double	density = 0
	)

Definition at line 26 of file AtELossTable.cxx.

Member Function Documentation

GetdEdx()

double AtTools::AtELossTable::GetdEdx ( double  energy ) const

overridevirtual

Get the stopping power in MeV/mm

Implements AtTools::AtELossModel.

Definition at line 32 of file AtELossTable.cxx.

GetEnergy()

double AtTools::AtELossTable::GetEnergy ( double  energyIni, double  distance  ) const

overridevirtual

Get the energy of particle after traveling some distance (in mm). If the distance is negative, then returns the energy the particle had to reach energyIni after distance.

Implements AtTools::AtELossModel.

Definition at line 46 of file AtELossTable.cxx.

GetEnergyLoss()

virtual double AtTools::AtELossTable::GetEnergyLoss ( double  energyIni, double  distance  ) const

inlineoverridevirtual

Get the energy loss over some distance (in mm).

Implements AtTools::AtELossModel.

Definition at line 38 of file AtELossTable.h.

GetEnergyOld()

double AtTools::AtELossTable::GetEnergyOld	(	double	energyIni,
		double	distance
	)		const

Definition at line 74 of file AtELossTable.cxx.

GetRange()

double AtTools::AtELossTable::GetRange ( double  energyIni, double  energyFin = 0  ) const

overridevirtual

Get the range of the particle in the material.

Implements AtTools::AtELossModel.

Definition at line 38 of file AtELossTable.cxx.

LoadLiseTable()

void AtTools::AtELossTable::LoadLiseTable	(	std::string	fileName,
		double	mass,
		double	density,
		int	column = 2
	)

Load energy loss table from LISE++ (export of stopping power graph to file).

Parameters

[in]	fileName	Name of text file.
[in]	mass	Mass of the fragment in units of u.
[in]	density	Density of target in g/cm^3. If positive, units of table are assumed to be MeV/mg/cm^2. If not positive units of the table are assumed to be MeV/um and the target density is taken to be |density|.
[in]	column	The column in the table to use as the energy model (default LISE is 2).

Definition at line 170 of file AtELossTable.cxx.

LoadSrimTable()

void AtTools::AtELossTable::LoadSrimTable

(

std::string

fileName

)

Definition at line 113 of file AtELossTable.cxx.

SetDistanceError()

void AtTools::AtELossTable::SetDistanceError ( double  val )

inline

Set error in particle range when calculating energy losses.

Definition at line 24 of file AtELossTable.h.

Member Data Documentation

fDistErr

double AtTools::AtELossTable::fDistErr {1e-4}

protected

Definition at line 17 of file AtELossTable.h.

fdXdE

tk::spline AtTools::AtELossTable::fdXdE

protected

Definition at line 15 of file AtELossTable.h.

---

The documentation for this class was generated from the following files:

• /github/workspace/AtTools/AtELossTable.h
• /github/workspace/AtTools/AtELossTable.cxx
