AtTabPad Class Reference

#include <AtTabPad.h>

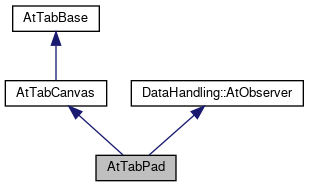

Inheritance diagram for AtTabPad:

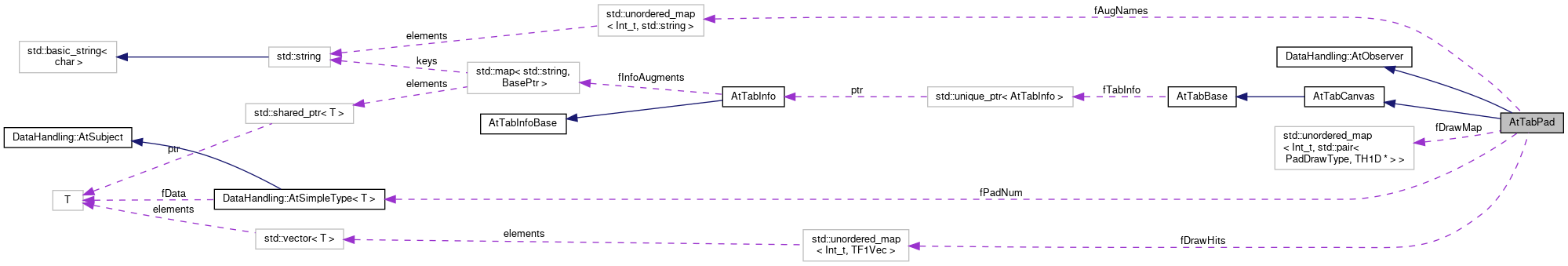

Collaboration diagram for AtTabPad:

Public Member Functions
	AtTabPad (int nRow=1, int nCol=1, TString name="AtPad")
	~AtTabPad ()
void	InitTab () override
void	Exec () override
	Called after the run's Exec() to update tab. More...
void	Update (DataHandling::AtSubject *sub) override
void	DrawADC (int row=0, int col=0)
void	DrawRawADC (int row=0, int col=0)
void	DrawArrayAug (TString augName, int row=0, int col=0)
void	DrawAuxADC (TString auxName, int row=0, int col=0)
void	DrawFPN (int row=0, int col=0)
void	DrawHits (int row=0, int col=0)
Public Member Functions inherited from AtTabCanvas
	AtTabCanvas (TString name, Int_t rows=1, Int_t cols=1)
Public Member Functions inherited from AtTabBase
	AtTabBase (TString tabName)
virtual	~AtTabBase ()=default
void	Init ()
	Called in the init stage of the run. More...
AtTabInfo *	GetTabInfo ()
void	SetTabName (TString name)
Public Member Functions inherited from DataHandling::AtObserver
virtual	~AtObserver ()=default

Protected Types
enum	PadDrawType {   PadDrawType::kADC, PadDrawType::kRawADC, PadDrawType::kArrAug, PadDrawType::kAuxPad,   PadDrawType::kFPN }
using	TF1Vec = std::vector< std::unique_ptr< TF1 > >

Protected Member Functions
void	MakeTab (TEveWindowSlot *) override
	Create the gui components of the tab in the passed window slot. More...
Protected Member Functions inherited from AtTabCanvas
void	UpdateCanvas ()
Protected Member Functions inherited from AtTabBase
template<typename T >
T *	GetFairRootInfo (std::string infoName=T::Class_Name())

Protected Attributes
std::unordered_map< Int_t, std::pair< PadDrawType, TH1D * > >	fDrawMap
std::unordered_map< Int_t, std::string >	fAugNames
	Let root handle hist memory. More...
DataHandling::AtPadNum *	fPadNum
std::unordered_map< Int_t, TF1Vec >	fDrawHits
Protected Attributes inherited from AtTabCanvas
TCanvas *	fCanvas {nullptr}
Int_t	fRows
Int_t	fCols
Protected Attributes inherited from AtTabBase
Int_t	fTabId {0}
TString	fTabName
std::unique_ptr< AtTabInfo >	fTabInfo {std::make_unique<AtTabInfo>()}

Additional Inherited Members
Static Protected Attributes inherited from AtTabBase
static int	fNumTabs = 0

Detailed Description

Class for drawing traces from pads in an AtRawEvent.

Definition at line 33 of file AtTabPad.h.

Member Typedef Documentation

TF1Vec

using AtTabPad::TF1Vec = std::vector<std::unique_ptr<TF1> >

protected

Definition at line 36 of file AtTabPad.h.

Member Enumeration Documentation

PadDrawType

enum AtTabPad::PadDrawType

strongprotected

Enumerator
kADC
kRawADC
kArrAug
kAuxPad
kFPN

Definition at line 35 of file AtTabPad.h.

Constructor & Destructor Documentation

AtTabPad()

AtTabPad::AtTabPad	(	int	nRow = 1,
		int	nCol = 1,
		TString	name = "AtPad"
	)

Definition at line 35 of file AtTabPad.cxx.

~AtTabPad()

AtTabPad::~AtTabPad

(

)

Definition at line 43 of file AtTabPad.cxx.

Member Function Documentation

DrawADC()

void AtTabPad::DrawADC	(	int	row = 0,
		int	col = 0
	)

Definition at line 231 of file AtTabPad.cxx.

DrawArrayAug()

void AtTabPad::DrawArrayAug	(	TString	augName,
		int	row = 0,
		int	col = 0
	)

Definition at line 246 of file AtTabPad.cxx.

DrawAuxADC()

void AtTabPad::DrawAuxADC	(	TString	auxName,
		int	row = 0,
		int	col = 0
	)

Definition at line 252 of file AtTabPad.cxx.

DrawFPN()

void AtTabPad::DrawFPN	(	int	row = 0,
		int	col = 0
	)

Definition at line 236 of file AtTabPad.cxx.

DrawHits()

void AtTabPad::DrawHits	(	int	row = 0,
		int	col = 0
	)

If called will draw a pictoral representation of the hit on the corresponding pad. Requires a parameter file "AtDigiPar" be added to the runtime DB. If the hit has a non-zero Z variance, it will draw a gaussian with integral Q. If the hit has a zero variance will draw a point at (z,Q).

Definition at line 227 of file AtTabPad.cxx.

DrawRawADC()

void AtTabPad::DrawRawADC	(	int	row = 0,
		int	col = 0
	)

Definition at line 241 of file AtTabPad.cxx.

Exec()

void AtTabPad::Exec ( )

overridevirtual

Called after the run's Exec() to update tab.

Implements AtTabBase.

Definition at line 68 of file AtTabPad.cxx.

InitTab()

void AtTabPad::InitTab ( )

overridevirtual

Responsible for creating the fTabInfo object that will be updated on each event. That fTabInfo object will be initialized without user input though

Implements AtTabBase.

Definition at line 48 of file AtTabPad.cxx.

MakeTab()

void AtTabPad::MakeTab ( TEveWindowSlot *  slot )

overrideprotectedvirtual

Create the gui components of the tab in the passed window slot.

Reimplemented from AtTabCanvas.

Definition at line 63 of file AtTabPad.cxx.

Update()

void AtTabPad::Update ( DataHandling::AtSubject *  sub )

overridevirtual

Implements DataHandling::AtObserver.

Definition at line 92 of file AtTabPad.cxx.

Member Data Documentation

fAugNames

std::unordered_map<Int_t, std::string> AtTabPad::fAugNames

protected

Let root handle hist memory.

Definition at line 41 of file AtTabPad.h.

fDrawHits

std::unordered_map<Int_t, TF1Vec> AtTabPad::fDrawHits

protected

Definition at line 44 of file AtTabPad.h.

fDrawMap

std::unordered_map<Int_t, std::pair<PadDrawType, TH1D *> > AtTabPad::fDrawMap

protected

<location, <type, histo> location is row * nCols + col

Definition at line 40 of file AtTabPad.h.

fPadNum

DataHandling::AtPadNum* AtTabPad::fPadNum

protected

Definition at line 42 of file AtTabPad.h.

---

The documentation for this class was generated from the following files:

• /github/workspace/AtEventDisplay/AtTabs/AtTabPad.h
• /github/workspace/AtEventDisplay/AtTabs/AtTabPad.cxx
