#include <AtTPCIonGenerator.h>

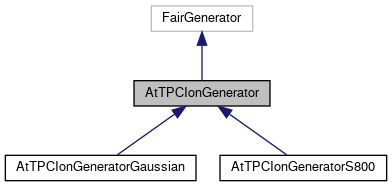

Inheritance diagram for AtTPCIonGenerator:

[legend]

Collaboration diagram for AtTPCIonGenerator:

Public Member Functions
	AtTPCIonGenerator ()

	AtTPCIonGenerator (const Char_t *ionName, Int_t mult, Double_t px, Double_t py, Double_t pz)

	AtTPCIonGenerator (const char *name, Int_t z, Int_t a, Int_t q, Int_t mult, Double_t px, Double_t py, Double_t pz, Double_t Ex, Double_t m, Double_t ener, Double_t eLoss=-1)

virtual	~AtTPCIonGenerator ()=default

void	SetCharge (Int_t charge)

void	SetExcitationEnergy (Double_t eExc)

void	SetMass (Double_t mass)

void	SetSpotRadius (Double32_t r=0, Double32_t z=0, Double32_t offx=0, Double32_t offy=0)

void	SetDoReaction (Bool_t doReact)

virtual Bool_t	ReadEvent (FairPrimaryGenerator *primGen)

Protected Member Functions
virtual void	SetVertexCoordinates ()
	Sets fVx, fVy, fVz depending on the type of ion generator. More...

Protected Attributes
Int_t	fMult
	Number of the instance of this class. More...

Double_t	fPx

Double_t	fPy

Double_t	fPz

Double32_t	fR

Double32_t	fz

Double32_t	fOffsetX

Double32_t	fOffsetY

Double_t	fVx

Double_t	fVy

Double_t	fVz

FairIon *	fIon

Int_t	fQ

Int_t	fNomEner {}

Double_t	fMaxEnLoss {}

Bool_t	fDoReact {true}

Static Protected Attributes
static Int_t	fgNIon = 0

Detailed Description

Definition at line 22 of file AtTPCIonGenerator.h.

Constructor & Destructor Documentation

◆ AtTPCIonGenerator() [1/3]

AtTPCIonGenerator::AtTPCIonGenerator ( )

Default constructor

Definition at line 41 of file AtTPCIonGenerator.cxx.

◆ AtTPCIonGenerator() [2/3]

AtTPCIonGenerator::AtTPCIonGenerator	(	const Char_t *	ionName,
		Int_t	mult,
		Double_t	px,
		Double_t	py,
		Double_t	pz
	)

Constructor with ion name For the generation of ions with pre-defined FairIon By default, the excitation energy is zero. This can be changed with the respective modifiers.

Parameters

ionName	Ion name
mult	Number of ions per event
px,py,pz	Momentum components [GeV] per nucleon!
vx,vy,vz	Vertex coordinates [cm]

Definition at line 51 of file AtTPCIonGenerator.cxx.

◆ AtTPCIonGenerator() [3/3]

AtTPCIonGenerator::AtTPCIonGenerator	(	const char *	name,
		Int_t	z,
		Int_t	a,
		Int_t	q,
		Int_t	mult,
		Double_t	px,
		Double_t	py,
		Double_t	pz,
		Double_t	Ex,
		Double_t	m,
		Double_t	ener,
		Double_t	eLoss = `-1`
	)

Default constructor For the generation of ions with atomic number z and mass number a. By default, the mass equals a times the proton mass and the excitation energy is zero. This can be changed with the respective modifiers.

Parameters

z	Atomic number
a	Atomic mass
q	Electric charge [e]
mult	Number of ions per event
px,py,pz	Momentum components [GeV] per nucleon!
vx,vy,vz	Vertex coordinates [cm]
ener	Energy of the ion.
eLoss	Maximum energy loss before reaction happens. Defaults to ener.

Definition at line 93 of file AtTPCIonGenerator.cxx.

◆ ~AtTPCIonGenerator()

virtual AtTPCIonGenerator::~AtTPCIonGenerator ( )

virtualdefault

Destructor

Member Function Documentation

◆ ReadEvent()

Bool_t AtTPCIonGenerator::ReadEvent ( FairPrimaryGenerator * primGen )

virtual

Method ReadEvent Generates <mult> of the specified ions and hands hem to the FairPrimaryGenerator.

Definition at line 139 of file AtTPCIonGenerator.cxx.

◆ SetCharge()

void AtTPCIonGenerator::SetCharge ( Int_t charge )

inline

Modifiers

Definition at line 77 of file AtTPCIonGenerator.h.

◆ SetDoReaction()

void AtTPCIonGenerator::SetDoReaction ( Bool_t doReact )

inline

Definition at line 83 of file AtTPCIonGenerator.h.

◆ SetExcitationEnergy()

void AtTPCIonGenerator::SetExcitationEnergy ( Double_t eExc )

Definition at line 113 of file AtTPCIonGenerator.cxx.

◆ SetMass()

void AtTPCIonGenerator::SetMass ( Double_t mass )

Definition at line 117 of file AtTPCIonGenerator.cxx.

◆ SetSpotRadius()

void AtTPCIonGenerator::SetSpotRadius	(	Double32_t	r = `0`,
		Double32_t	z = `0`,
		Double32_t	offx = `0`,
		Double32_t	offy = `0`
	)

Definition at line 121 of file AtTPCIonGenerator.cxx.

◆ SetVertexCoordinates()

void AtTPCIonGenerator::SetVertexCoordinates ( )

protectedvirtual

Sets fVx, fVy, fVz depending on the type of ion generator.

Reimplemented in AtTPCIonGeneratorS800, and AtTPCIonGeneratorGaussian.

Definition at line 129 of file AtTPCIonGenerator.cxx.

Member Data Documentation

◆ fDoReact

Bool_t AtTPCIonGenerator::fDoReact {true}

protected

Definition at line 36 of file AtTPCIonGenerator.h.

◆ fgNIon

Int_t AtTPCIonGenerator::fgNIon = 0

staticprotected

Definition at line 24 of file AtTPCIonGenerator.h.

◆ fIon

FairIon* AtTPCIonGenerator::fIon

protected

Definition at line 31 of file AtTPCIonGenerator.h.

◆ fMaxEnLoss

Double_t AtTPCIonGenerator::fMaxEnLoss {}

protected

Definition at line 34 of file AtTPCIonGenerator.h.

◆ fMult

Int_t AtTPCIonGenerator::fMult

protected

Number of the instance of this class.

Definition at line 25 of file AtTPCIonGenerator.h.

◆ fNomEner

Int_t AtTPCIonGenerator::fNomEner {}

protected

Definition at line 33 of file AtTPCIonGenerator.h.

◆ fOffsetX

Double32_t AtTPCIonGenerator::fOffsetX

protected

Definition at line 28 of file AtTPCIonGenerator.h.

◆ fOffsetY

Double32_t AtTPCIonGenerator::fOffsetY

protected

Definition at line 28 of file AtTPCIonGenerator.h.

◆ fPx

Double_t AtTPCIonGenerator::fPx

protected

Definition at line 26 of file AtTPCIonGenerator.h.

◆ fPy

Double_t AtTPCIonGenerator::fPy

protected

Definition at line 26 of file AtTPCIonGenerator.h.

◆ fPz

Double_t AtTPCIonGenerator::fPz

protected

Definition at line 26 of file AtTPCIonGenerator.h.

◆ fQ

Int_t AtTPCIonGenerator::fQ

protected

Definition at line 32 of file AtTPCIonGenerator.h.

◆ fR

Double32_t AtTPCIonGenerator::fR

protected

Definition at line 28 of file AtTPCIonGenerator.h.

◆ fVx

Double_t AtTPCIonGenerator::fVx

protected

Definition at line 29 of file AtTPCIonGenerator.h.

◆ fVy

Double_t AtTPCIonGenerator::fVy

protected

Definition at line 29 of file AtTPCIonGenerator.h.

◆ fVz

Double_t AtTPCIonGenerator::fVz

protected

Definition at line 29 of file AtTPCIonGenerator.h.

◆ fz

Double32_t AtTPCIonGenerator::fz

protected

Definition at line 28 of file AtTPCIonGenerator.h.

The documentation for this class was generated from the following files:

/github/workspace/AtGenerators/AtTPCIonGenerator.h
/github/workspace/AtGenerators/AtTPCIonGenerator.cxx
