#include <AtSidebarAddon.h>

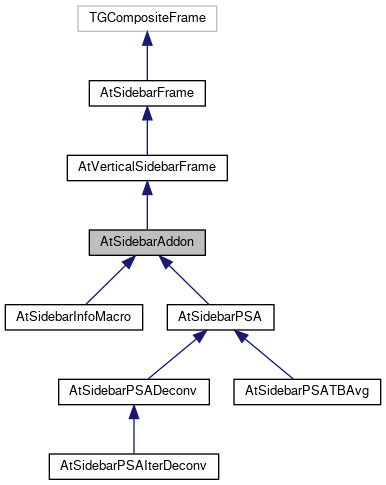

Inheritance diagram for AtSidebarAddon:

[legend]

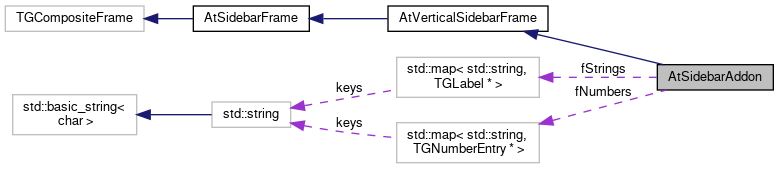

Collaboration diagram for AtSidebarAddon:

[legend]

Public Member Functions
	AtSidebarAddon (const TGWindow *p=nullptr, UInt_t w=1, UInt_t h=1, UInt_t options=0, Pixel_t back=GetDefaultFrameBackground())

void	AddInfoBox (std::string label)

void	AddIntBox (std::string label, std::string function, int min=0, int max=1)

TString	GetInfoString (std::string label)

Long_t	GetIntNumber (std::string label)

void	SetInfoString (std::string label, TString value)

void	SetIntNumber (std::string label, Long_t value)

void	FillFrame () override

	ClassDefOverride (AtSidebarAddon, 1)

Public Member Functions inherited from AtVerticalSidebarFrame
	AtVerticalSidebarFrame (const TGWindow *p=nullptr, UInt_t w=1, UInt_t h=1, UInt_t options=0, Pixel_t back=GetDefaultFrameBackground())

Public Member Functions inherited from AtSidebarFrame
void	UsePictureButtons (bool val=true)
	Use text only buttons instead of picture buttons. More...

Protected Attributes
std::map< std::string, TGNumberEntry * >	fNumbers

std::map< std::string, TGLabel * >	fStrings

Protected Attributes inherited from AtSidebarFrame
bool	kUsePictureButtons {false}
	Option to disable picture buttons since they break some machines. More...

Additional Inherited Members
Protected Member Functions inherited from AtSidebarFrame
	AtSidebarFrame (const TGWindow *p=nullptr, UInt_t w=1, UInt_t h=1, UInt_t options=0, Pixel_t back=GetDefaultFrameBackground())

Detailed Description

A base class for creating addons to the Event Viewer. Contains functions for adding different types of sidebar items. See AtSidebarPSA for an example of the implementation.

Definition at line 24 of file AtSidebarAddon.h.

Constructor & Destructor Documentation

◆ AtSidebarAddon()

AtSidebarAddon::AtSidebarAddon	(	const TGWindow *	p = `nullptr`,
		UInt_t	w = `1`,
		UInt_t	h = `1`,
		UInt_t	options = `0`,
		Pixel_t	back = `GetDefaultFrameBackground()`
	)

inline

Definition at line 30 of file AtSidebarAddon.h.

Member Function Documentation

◆ AddInfoBox()

void AtSidebarAddon::AddInfoBox ( std::string label )

Adds a text box for an string that updates with SetInfoString. label is used as the title for the text box and to index the string stored by the text box.

Definition at line 18 of file AtSidebarAddon.cxx.

◆ AddIntBox()

void AtSidebarAddon::AddIntBox	(	std::string	label,
		std::string	function,
		int	min = `0`,
		int	max = `1`
	)

Adds a text box for an itneger that triggers a function defined in the derived class. label is used as the title for the text box and to index the number stored by the text box. min and max are inlclusive bounds.

Definition at line 34 of file AtSidebarAddon.cxx.

◆ ClassDefOverride()

AtSidebarAddon::ClassDefOverride	(	AtSidebarAddon	,
		1
	)

◆ FillFrame()

void AtSidebarAddon::FillFrame ( )

inlineoverridevirtual

Called at the end of the Init stage. Is what will create all of the components in the sidebar frame.

Implements AtSidebarFrame.

Reimplemented in AtSidebarInfoMacro, AtSidebarPSA, AtSidebarPSADeconv, AtSidebarPSATBAvg, and AtSidebarPSAIterDeconv.

Definition at line 69 of file AtSidebarAddon.h.

◆ GetInfoString()

TString AtSidebarAddon::GetInfoString ( std::string label )

Get the string managed by an AddInfoBox indexed by label.

Definition at line 54 of file AtSidebarAddon.cxx.

◆ GetIntNumber()

Long_t AtSidebarAddon::GetIntNumber ( std::string label )

Get the integer managed by an AddIntBox indexed by label.

Definition at line 63 of file AtSidebarAddon.cxx.

◆ SetInfoString()

void AtSidebarAddon::SetInfoString	(	std::string	label,
		TString	value
	)

Set the string managed by an AddInfoBox indexed by label.

Definition at line 72 of file AtSidebarAddon.cxx.

◆ SetIntNumber()

void AtSidebarAddon::SetIntNumber	(	std::string	label,
		Long_t	value
	)

Set the integer managed by an AddIntBox indexed by label.

Definition at line 82 of file AtSidebarAddon.cxx.

Member Data Documentation

◆ fNumbers

std::map<std::string, TGNumberEntry *> AtSidebarAddon::fNumbers

protected

Definition at line 26 of file AtSidebarAddon.h.

◆ fStrings

std::map<std::string, TGLabel *> AtSidebarAddon::fStrings
