Abstract base class for getting current through deconvolution. More...

#include <AtPSADeconv.h>

Inheritance diagram for AtPSADeconv:

[legend]

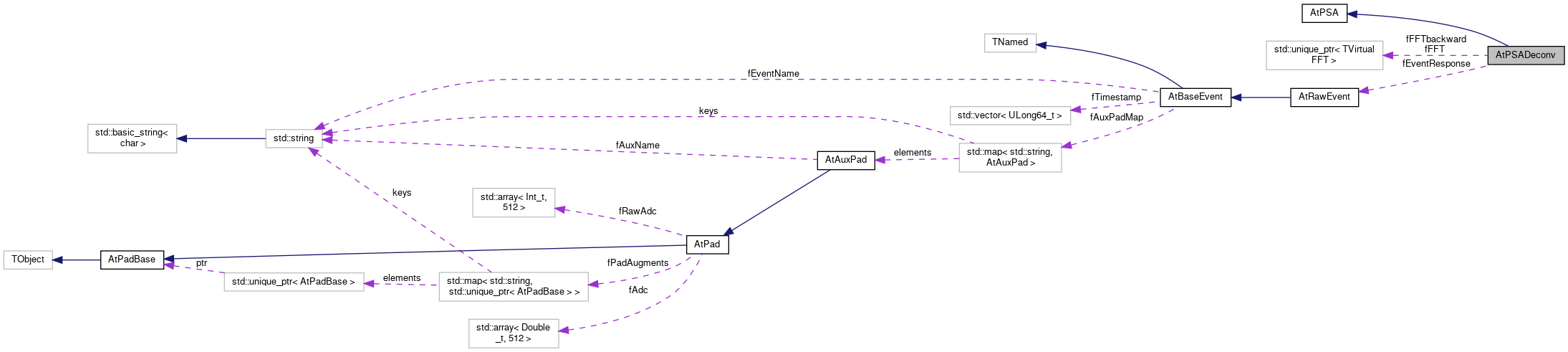

Collaboration diagram for AtPSADeconv:

[legend]

Classes
struct	ZHitData
	Struct for storing Z and Q hit data used by getZandQ function. More...

Public Member Functions
	AtPSADeconv ()

	AtPSADeconv (AtPSADeconv &&obj)=default

AtPSADeconv &	operator= (AtPSADeconv &&obj)=default

	AtPSADeconv (const AtPSADeconv &obj)

	~AtPSADeconv ()=default

virtual std::unique_ptr< AtPSA >	Clone () override

virtual HitVector	AnalyzePad (AtPad *pad) override

void	SetFilterOrder (int order)

void	SetCutoffFreq (int freq)

void	SetUseSimCharge (bool val)

int	GetFilterOrder ()

int	GetCutoffFreq ()

void	SetResponse (AtRawEvent response)

void	SetResponse (ResponseFunc response)

AtPad &	GetResponse (int padNum)
	Get the AtPad describing the response of the electronics. More...

const AtPadFFT &	GetResponseFFT (int padNum)
	Get the fourier transform describing the response of the electronics. More...

const AtPadFFT &	GetResponseFilter (int padNum)
	Get the filter in fourier space describing the response of the electronics. More...

Public Member Functions inherited from AtPSA
	AtPSA ()=default

virtual	~AtPSA ()=default

virtual void	Init ()

void	SetThreshold (Int_t threshold)

void	SetThresholdLow (Int_t thresholdlow)

int	GetThreshold ()

int	GetThresholdLow ()

void	SetSimulatedEvent (TClonesArray *MCSimPointArray)

AtEvent	Analyze (AtRawEvent &rawEvent)

virtual void	Analyze (AtRawEvent rawEvent, AtEvent event)

Protected Types
using	ResponseFunc = std::function< double(int, double)>

using	HitData = std::vector< ZHitData >
	Data structure for Z loc (TB), Z variance (TB), Charge (arb), Charge variance (arb) More...

Protected Types inherited from AtPSA
using	HitVector = std::vector< std::unique_ptr< AtHit > >

Protected Member Functions
AtPad *	createResponsePad (int padNum)

virtual HitVector	chargeToHits (AtPad &charge, std::string qName)

virtual HitData	getZandQ (const AtPad::trace &charge)

virtual double	getZhitVariance (double zLoc, double zLocVar) const override

void	initFFTs ()

void	initFilter ()
	Update all "filter" augments in fEventResponse with the new parameters. More...

void	updateFilter (const AtPadFFT &fft, AtPadFFT *filter)

double	getFilterKernel (int freq)

HitVector	AnalyzeFFTpad (AtPad &pad)
	Assumes that the pad has it's fourier transform information filled. More...

Protected Member Functions inherited from AtPSA
void	TrackMCPoints (std::multimap< Int_t, std::size_t > &map, AtHit &hit)

Double_t	CalculateZ (Double_t peakIdx)
	Calculate z position in mm using the peak index. More...

Double_t	CalculateZGeo (Double_t peakIdx)

Double_t	getThreshold (int padSize=-1)

virtual std::pair< double, double >	getXYhitVariance () const

Protected Attributes
AtRawEvent	fEventResponse

ResponseFunc	fResponse {nullptr}

std::unique_ptr< TVirtualFFT >	fFFT {nullptr}

std::unique_ptr< TVirtualFFT >	fFFTbackward {nullptr}

int	fFilterOrder {0}

int	fCutoffFreq {-1}

bool	fUseSimulatedCharge {false}

Protected Attributes inherited from AtPSA
TClonesArray *	fMCSimPointArray {}

Bool_t	fUsingLowThreshold {false}

Double_t	fBField {}

Double_t	fEField {}

Int_t	fTB0 {}

Int_t	fNumTbs {512}

Int_t	fTBTime {}

Int_t	fEntTB {}

Double_t	fDriftVelocity {}

Double_t	fZk {}

Detailed Description

Abstract base class for getting current through deconvolution.

This PSA method calculates the charge collected over a pad. It operates as a base class where specific PSA methods can be implemented on top of this class to convert the current into hits in 3D space.

Mathmatically what this class does is take in an electronic response function r(TB), and stores the FFT of that response function R(k). For the trace recorded in each pad s(TB), we then calculate the FFT of that trace S(k), and divide by R(k). We then apply a low-pass Buttersworth filter of even order n with cuttoff frequency w_c (both specified by the user). This, transformed back into the time domain, should give the input current over the pad.

It saves the reconstruced charge as an augment (AtPadArray with name "Qreco") to the pad in the input event

Author: A.K. Anthony

Definition at line 38 of file AtPSADeconv.h.

Member Typedef Documentation

◆ HitData

using AtPSADeconv::HitData = std::vector<ZHitData>

protected

Data structure for Z loc (TB), Z variance (TB), Charge (arb), Charge variance (arb)

Definition at line 109 of file AtPSADeconv.h.

◆ ResponseFunc

using AtPSADeconv::ResponseFunc = std::function<double(int, double)>

protected

Definition at line 41 of file AtPSADeconv.h.

Constructor & Destructor Documentation

◆ AtPSADeconv() [1/3]

AtPSADeconv::AtPSADeconv ( )

Definition at line 28 of file AtPSADeconv.cxx.

◆ AtPSADeconv() [2/3]

AtPSADeconv::AtPSADeconv ( AtPSADeconv && obj )

default

◆ AtPSADeconv() [3/3]

AtPSADeconv::AtPSADeconv ( const AtPSADeconv & obj )

Definition at line 33 of file AtPSADeconv.cxx.

◆ ~AtPSADeconv()

AtPSADeconv::~AtPSADeconv ( )

default

Member Function Documentation

◆ AnalyzeFFTpad()

AtPSADeconv::HitVector AtPSADeconv::AnalyzeFFTpad ( AtPad & pad )

protected

Assumes that the pad has it's fourier transform information filled.

Definition at line 176 of file AtPSADeconv.cxx.

◆ AnalyzePad()

AtPSADeconv::HitVector AtPSADeconv::AnalyzePad ( AtPad * pad )

overridevirtual

Implements AtPSA.

Reimplemented in AtPSAIterDeconv.

Definition at line 216 of file AtPSADeconv.cxx.

◆ chargeToHits()

AtPSADeconv::HitVector AtPSADeconv::chargeToHits	(	AtPad &	charge,
		std::string	qName
	)

protectedvirtual

Takes a pad with charge information and returns a list of hits to add to the event.

Definition at line 235 of file AtPSADeconv.cxx.

◆ Clone()

virtual std::unique_ptr<AtPSA> AtPSADeconv::Clone ( )

inlineoverridevirtual

Implements AtPSA.

Reimplemented in AtPSADeconvFit.

Definition at line 73 of file AtPSADeconv.h.

◆ createResponsePad()

AtPad * AtPSADeconv::createResponsePad ( int padNum )

protected

Definition at line 135 of file AtPSADeconv.cxx.

◆ GetCutoffFreq()

int AtPSADeconv::GetCutoffFreq ( )

inline

Definition at line 81 of file AtPSADeconv.h.

◆ getFilterKernel()

double AtPSADeconv::getFilterKernel ( int freq )

protected

Parameters

[in] freq The frequency compnent

Returns: The kernel of the low pass filter as set at that frequency

Todo:: : Precompute once and save with the transformed response function

Definition at line 155 of file AtPSADeconv.cxx.

◆ GetFilterOrder()

int AtPSADeconv::GetFilterOrder ( )

inline

Definition at line 80 of file AtPSADeconv.h.

◆ GetResponse()

AtPad & AtPSADeconv::GetResponse ( int padNum )

Get the AtPad describing the response of the electronics.

If the pad is not in fEventResponse it will be added.

Definition at line 70 of file AtPSADeconv.cxx.

◆ GetResponseFFT()

const AtPadFFT & AtPSADeconv::GetResponseFFT ( int padNum )

Get the fourier transform describing the response of the electronics.

If the pad is not in fEventResponse it will be added, and if needed the fft will be calcualted and added as an augment with the name "fft".

Definition at line 86 of file AtPSADeconv.cxx.

◆ GetResponseFilter()

const AtPadFFT & AtPSADeconv::GetResponseFilter ( int padNum )

Get the filter in fourier space describing the response of the electronics.

If the pad is not in fEventResponse it will be added, and if needed the fft and filter will be calculated and added as augments with the names "fft" and "filter", respectivley.

Definition at line 109 of file AtPSADeconv.cxx.

◆ getZandQ()

AtPSADeconv::HitData AtPSADeconv::getZandQ ( const AtPad::trace & charge )

protectedvirtual

Returns the salient data from the charge distribution: Hit charge/location in Z and their std. deviation. Called by chargeToHits. By default it returns the weighted average of the charge and it's variance.

Reimplemented in AtPSADeconvFit.

Definition at line 263 of file AtPSADeconv.cxx.

◆ getZhitVariance()

double AtPSADeconv::getZhitVariance	(	double	zLoc,
		double	zLocVar
	)		const

overrideprotectedvirtual

Returns a vector populated with the variance of the hit according the the diffusion coefficients in the parameter file.

Parameters

[in]	zLoc	Location of hit in TB
[in]	zLocVar	Variance of hit in TB^2

Returns: variance of hit location in mm^2

Todo:: Implement the function so it doesn't return all zeros...

Reimplemented from AtPSA.

Definition at line 285 of file AtPSADeconv.cxx.

◆ initFFTs()

void AtPSADeconv::initFFTs ( )

protected

Definition at line 54 of file AtPSADeconv.cxx.

◆ initFilter()

void AtPSADeconv::initFilter ( )

protected

Update all "filter" augments in fEventResponse with the new parameters.

Definition at line 165 of file AtPSADeconv.cxx.

◆ operator=()

AtPSADeconv& AtPSADeconv::operator= ( AtPSADeconv && obj )

default

◆ SetCutoffFreq()

void AtPSADeconv::SetCutoffFreq ( int freq )

Definition at line 48 of file AtPSADeconv.cxx.

◆ SetFilterOrder()

void AtPSADeconv::SetFilterOrder ( int order )

Definition at line 40 of file AtPSADeconv.cxx.

◆ SetResponse() [1/2]

void AtPSADeconv::SetResponse ( AtRawEvent response )

inline

Copy an AtRawEvent to use as the response function. If the pad number requested does not exist in the AtRawEvent it will use the callable object stored in fResponse.

Definition at line 87 of file AtPSADeconv.h.

◆ SetResponse() [2/2]

void AtPSADeconv::SetResponse ( ResponseFunc response )

inline

Response function to use if the AtRawEvent representation of the response function does not contain the pad we are looking for. When this is used to get the response function, it is cached in the internal fEventResponse.

Definition at line 93 of file AtPSADeconv.h.

◆ SetUseSimCharge()

void AtPSADeconv::SetUseSimCharge ( bool val )

inline

Definition at line 78 of file AtPSADeconv.h.

◆ updateFilter()

void AtPSADeconv::updateFilter	(	const AtPadFFT &	fft,
		AtPadFFT *	filter
	)

protected

Definition at line 122 of file AtPSADeconv.cxx.

Member Data Documentation

◆ fCutoffFreq

int AtPSADeconv::fCutoffFreq {-1}

protected

Definition at line 63 of file AtPSADeconv.h.

◆ fEventResponse

AtRawEvent AtPSADeconv::fEventResponse

protected

AtRawEvent holding the response function and filter for every pad. If there is only a single response being used for the entire detector, than always use pad 0.

Each pad in this event must have two augments. An AtPadFFT of the name "fft" which holds the FFT of the response, and an AtPadFFT with the name "filter" which holds the FFT of the response multiplied by the low pass filter in use. When a pad is accessed, it will check for the existance of these two augments and add them if necessary.

Definition at line 52 of file AtPSADeconv.h.

◆ fFFT

std::unique_ptr<TVirtualFFT> AtPSADeconv::fFFT {nullptr}

protected

Definition at line 59 of file AtPSADeconv.h.

◆ fFFTbackward

std::unique_ptr<TVirtualFFT> AtPSADeconv::fFFTbackward {nullptr}

protected

Definition at line 60 of file AtPSADeconv.h.

◆ fFilterOrder

int AtPSADeconv::fFilterOrder {0}

protected

Definition at line 62 of file AtPSADeconv.h.

◆ fResponse

ResponseFunc AtPSADeconv::fResponse {nullptr}

protected

Callable object representing the response function of the detecotor. Will be used to fill fEventResponse if the pad does not already exist within that event.

Definition at line 57 of file AtPSADeconv.h.

◆ fUseSimulatedCharge

bool AtPSADeconv::fUseSimulatedCharge {false}

protected

Definition at line 64 of file AtPSADeconv.h.

The documentation for this class was generated from the following files:

/github/workspace/AtReconstruction/AtPulseAnalyzer/AtPSADeconv.h
/github/workspace/AtReconstruction/AtPulseAnalyzer/AtPSADeconv.cxx
