: Class representing a cluster of hits that arise from the same deposition of charge in space. Or at least, that is the assumtion that underlies the math in the class. More...

#include <AtHitCluster.h>

Inheritance diagram for AtHitCluster:

[legend]

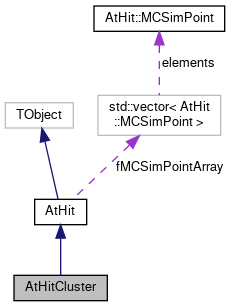

Collaboration diagram for AtHitCluster:

[legend]

Public Member Functions
	AtHitCluster ()

	AtHitCluster (const AtHitCluster &cluster)=default

virtual	~AtHitCluster ()=default

virtual std::unique_ptr< AtHit >	Clone () override

void	SetCovMatrix (TMatrixDSym matrix)

void	SetCovMatrix (int i, int j, double val)
	Sets the cov[i,j] = cov[j,i] = val. More...

virtual void	SetPositionVariance (const XYZVector &vec) override

void	SetLength (Double_t length)

void	SetClusterID (Int_t id)

virtual void	AddHit (const AtHit &hit)
	Add hit to cluster. More...

Double_t	GetLength () const

XYZPoint	GetPositionCharge () const

const TMatrixDSym &	GetCovMatrix () const

const TMatrixDSym &	GetCovNumerator () const

Int_t	GetClusterID () const

Int_t	GetClusterSize () const

Public Member Functions inherited from AtHit
	AtHit (Int_t hitID=-1)

	AtHit (Int_t padNum, XYZPoint location, Double_t charge)

	AtHit (Int_t hitID, Int_t padNum, XYZPoint location, Double_t charge)

	AtHit (const AtHit &)=default

	AtHit (AtHit &&)=default

AtHit &	operator= (const AtHit &)=default

AtHit &	operator= (AtHit &&)=default

virtual	~AtHit ()=default

H5::CompType	GetHDF5Type ()
	Returns the type specification of a hit. More...

void	SetCharge (Double_t charge)

void	SetChargeVariance (Double_t chargeVar)

void	SetPosition (const XYZPoint &pos)

void	SetHitID (Int_t hitID)

void	SetPadNum (Int_t padNum)

void	SetTraceIntegral (Double_t integral)

void	SetHitMult (Int_t HitMult)

void	SetTimeStamp (Int_t Time)

void	SetTimeStampCorr (Double_t TimeCorr)

void	SetTimeStampCorrInter (Double_t TimeCorrInter)

void	AddMCSimPoint (const AtHit::MCSimPoint &point)

Int_t	GetHitID () const

const XYZPoint &	GetPosition () const

const XYZVector &	GetPositionVariance () const

XYZVector	GetPositionSigma () const

Double_t	GetCharge () const

Int_t	GetPadNum () const

Double_t	GetTraceIntegral () const

Int_t	GetHitMult () const

Int_t	GetTimeStamp () const

Double_t	GetTimeStampCorr () const

Double_t	GetTimeStampCorrInter () const

const std::vector< AtHit::MCSimPoint > &	GetMCSimPointArray () const

	ClassDef (AtHit, 5)

Protected Member Functions
template<class A , class B >
XYZVector	ElementMult (const A &a, const B &b)

template<class A , class B >
XYZVector	ElementDiv (const A &a, const B &b)

template<class T >
T	ElementInvert (const T &b)

void	updateWeightsAndCharge (const AtHit &hit)

void	updatePosition (const AtHit &hit)

void	updateCovariance (const AtHit &hit)

	ClassDefOverride (AtHitCluster, 4)

Protected Attributes
Int_t	fClusterID {-1}

TMatrixDSym	fCovMatrix {3}

TMatrixDSym	fCovNumerator {3}

XYZVector	fTotalWeight {0, 0, 0}

XYZVector	fTotalWeight2 {0, 0, 0}

XYZVector	fWeight {0, 0, 0}

XYZPoint	fPositionCharge {0, 0, 0}

XYZPoint	fPositionChargeOld {0, 0, 0}

XYZVector	fPositionOld {0, 0, 0}

Double_t	fLength {-999}

Int_t	fClusterSize {0}

Protected Attributes inherited from AtHit
Double_t	fCharge

Double_t	fChargeVariance {0}

XYZPoint	fPosition

XYZVector	fPositionVariance {}

Int_t	fHitID

Int_t	fPadNum

Double_t	fTraceIntegral {-1}

Int_t	fHitMult {1}

Int_t	fTimeStamp {0}

Double_t	fTimeStampCorr {0}

Double_t	fTimeStampCorrInter {0}

std::vector< AtHit::MCSimPoint >	fMCSimPointArray

Additional Inherited Members
Public Types inherited from AtHit
using	XYZPoint = ROOT::Math::XYZPoint

using	XYZVector = ROOT::Math::XYZVector

Static Public Member Functions inherited from AtHit
static Bool_t	SortHit (const AtHit &lhs, const AtHit &rhs)

static Bool_t	SortHit (const std::unique_ptr< AtHit > &lhs, const std::unique_ptr< AtHit > &rhs)

static Bool_t	SortHitTimePtr (const std::unique_ptr< AtHit > &lhs, const std::unique_ptr< AtHit > &rhs)

static Bool_t	SortHitTime (const AtHit &lhs, const AtHit &rhs)

Detailed Description

: Class representing a cluster of hits that arise from the same deposition of charge in space. Or at least, that is the assumtion that underlies the math in the class.

Will update the position, charge, variance, and covariance as additional hits are added to the cluster. The variance is calcualted using both frequency weights (the charge) and reliability weights (the inverse of the position variance of the hit). The covariance is calculated just using the frequency weights (charge) w.r.t. the charge-weighted estimator for the true mean (not the frequency and reliability estimator of the mean). Eventually, I will sit down and work out a recursive expression for the covariance using the best estimate of the mean instead of just their charge weighted.

The covariance and matrix can also be manually set like the old version of the class.

Three positions are stored in the cluster: fPositionFull is the position using the full information(charge and hit position variance). fPositionCharge is the position from just charge weighting. fPosition is the position without any weighting applied.

Definition at line 37 of file AtHitCluster.h.

Constructor & Destructor Documentation

◆ AtHitCluster() [1/2]

AtHitCluster::AtHitCluster ( )

Definition at line 22 of file AtHitCluster.cxx.

◆ AtHitCluster() [2/2]

AtHitCluster::AtHitCluster ( const AtHitCluster & cluster )

default

◆ ~AtHitCluster()

virtual AtHitCluster::~AtHitCluster ( )

virtualdefault

Member Function Documentation

◆ AddHit()

void AtHitCluster::AddHit ( const AtHit & hit )

virtual

Add hit to cluster.

Adds a hit, updating the clusters position and charge. As well as the covariance matrix. The variance is updated using the charge-weighted variance of the passed hit. The off diagonal elements of the covariance matrix are updated according to the "standard" textbook definition of the covariance matrix $COV_{x,y} = \frac{\Sigma_i^N (x_i - \hat{x})(y_i - \hat{y})}{N-1}$ .

The on diagonal elements of the covariance matrix (i.e. the variance) are updated assuming both a charge weighting, and a "reliablility" weighting from the variance in the position of the hits used to construct the hit cluster.

Reimplemented in AtHitClusterFull.

Definition at line 52 of file AtHitCluster.cxx.

◆ ClassDefOverride()

AtHitCluster::ClassDefOverride	(	AtHitCluster	,
		4
	)

protected

◆ Clone()

std::unique_ptr< AtHit > AtHitCluster::Clone ( )

overridevirtual

Reimplemented from AtHit.

Reimplemented in AtHitClusterFull.

Definition at line 17 of file AtHitCluster.cxx.

◆ ElementDiv()

template<class A , class B >

XYZVector AtHitCluster::ElementDiv	(	const A &	a,
		const B &	b
	)

inlineprotected

Definition at line 88 of file AtHitCluster.h.

◆ ElementInvert()

template<class T >

T AtHitCluster::ElementInvert ( const T & b )

inlineprotected

Definition at line 93 of file AtHitCluster.h.

◆ ElementMult()

template<class A , class B >

XYZVector AtHitCluster::ElementMult	(	const A &	a,
		const B &	b
	)

inlineprotected

Definition at line 83 of file AtHitCluster.h.

◆ GetClusterID()

Int_t AtHitCluster::GetClusterID ( ) const

inline

Definition at line 78 of file AtHitCluster.h.

◆ GetClusterSize()

Int_t AtHitCluster::GetClusterSize ( ) const

inline

Definition at line 79 of file AtHitCluster.h.

◆ GetCovMatrix()

const TMatrixDSym& AtHitCluster::GetCovMatrix ( ) const

inline

Definition at line 75 of file AtHitCluster.h.

◆ GetCovNumerator()

const TMatrixDSym& AtHitCluster::GetCovNumerator ( ) const

inline

Definition at line 76 of file AtHitCluster.h.

◆ GetLength()

Double_t AtHitCluster::GetLength ( ) const

inline

Definition at line 72 of file AtHitCluster.h.

◆ GetPositionCharge()

XYZPoint AtHitCluster::GetPositionCharge ( ) const

inline

Definition at line 73 of file AtHitCluster.h.

◆ SetClusterID()

void AtHitCluster::SetClusterID ( Int_t id )

inline

Definition at line 69 of file AtHitCluster.h.

◆ SetCovMatrix() [1/2]

void AtHitCluster::SetCovMatrix	(	int	i,
		int	j,
		double	val
	)

Sets the cov[i,j] = cov[j,i] = val.

Definition at line 32 of file AtHitCluster.cxx.

◆ SetCovMatrix() [2/2]

void AtHitCluster::SetCovMatrix ( TMatrixDSym matrix )

inline

Definition at line 65 of file AtHitCluster.h.

◆ SetLength()

void AtHitCluster::SetLength ( Double_t length )

inline

Definition at line 68 of file AtHitCluster.h.

◆ SetPositionVariance()

void AtHitCluster::SetPositionVariance ( const XYZVector & vec )

overridevirtual

Reimplemented from AtHit.

Definition at line 149 of file AtHitCluster.cxx.

◆ updateCovariance()

void AtHitCluster::updateCovariance ( const AtHit & hit )

protected

Updates the off diagonal covariance numerator according to eqn 15 and the off diagonal variance according to eqn 24. Updates the diagonal elements of the covariance according to eqns 20 and 24

Definition at line 66 of file AtHitCluster.cxx.

◆ updatePosition()

void AtHitCluster::updatePosition ( const AtHit & hit )

protected

Update the position based on eqn 21.

Parameters

[in] hit Hit to update the position with

Definition at line 113 of file AtHitCluster.cxx.

◆ updateWeightsAndCharge()

void AtHitCluster::updateWeightsAndCharge ( const AtHit & hit )

protected

Parameters

[in] hit Hit to add to the wights

Returns: weight of hit (1/var *q)

Definition at line 129 of file AtHitCluster.cxx.

Member Data Documentation

◆ fClusterID

Int_t AtHitCluster::fClusterID {-1}

protected

Definition at line 39 of file AtHitCluster.h.

◆ fClusterSize

Int_t AtHitCluster::fClusterSize {0}

protected

Definition at line 57 of file AtHitCluster.h.

◆ fCovMatrix

TMatrixDSym AtHitCluster::fCovMatrix {3}

protected

Definition at line 42 of file AtHitCluster.h.

◆ fCovNumerator

TMatrixDSym AtHitCluster::fCovNumerator {3}

protected

Definition at line 45 of file AtHitCluster.h.

◆ fLength

Double_t AtHitCluster::fLength {-999}

protected

Definition at line 56 of file AtHitCluster.h.

◆ fPositionCharge

XYZPoint AtHitCluster::fPositionCharge {0, 0, 0}

protected

Definition at line 52 of file AtHitCluster.h.

◆ fPositionChargeOld

XYZPoint AtHitCluster::fPositionChargeOld {0, 0, 0}

protected

Definition at line 53 of file AtHitCluster.h.

◆ fPositionOld

XYZVector AtHitCluster::fPositionOld {0, 0, 0}

protected

Definition at line 54 of file AtHitCluster.h.

◆ fTotalWeight

XYZVector AtHitCluster::fTotalWeight {0, 0, 0}

protected

Definition at line 48 of file AtHitCluster.h.

◆ fTotalWeight2

XYZVector AtHitCluster::fTotalWeight2 {0, 0, 0}

protected

Definition at line 49 of file AtHitCluster.h.

◆ fWeight

XYZVector AtHitCluster::fWeight {0, 0, 0}

protected

Definition at line 50 of file AtHitCluster.h.

The documentation for this class was generated from the following files:

/github/workspace/AtData/AtHitCluster.h
/github/workspace/AtData/AtHitCluster.cxx
