AtFilterSubtraction Class Reference

#include <AtFilterSubtraction.h>

Inheritance diagram for AtFilterSubtraction:

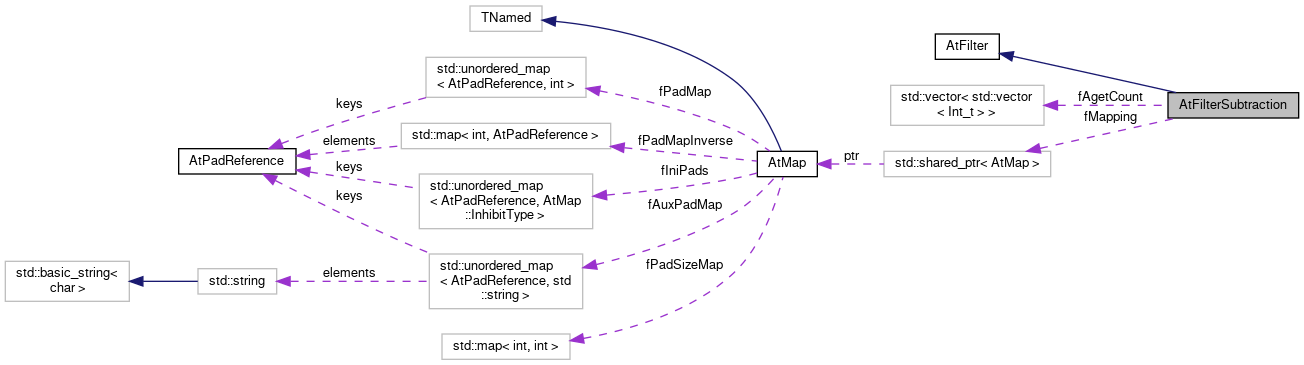

Collaboration diagram for AtFilterSubtraction:

Public Member Functions
	AtFilterSubtraction (AtMapPtr map, Int_t numCoBos=10, Int_t numAget=4)
void	SetThreshold (Double_t thresh)
void	SetIsGood (Bool_t val)
	Set if we should mark the event bad if we cannot find every AGET to do subtraction. More...
Double_t	GetThreshold () const
virtual void	Init () override
	Called at the init stage of the AtFilterTask. More...
virtual void	InitEvent (AtRawEvent *event) override
	Called once for each event at the start of the Exec phase. More...
virtual void	Filter (AtPad *pad, AtPadReference *padReference) override
	Called to filter each pad. More...
virtual bool	IsGoodEvent () override
	Called at the end of an event. Returns if filtering was successful. More...
Public Member Functions inherited from AtFilter
virtual	~AtFilter ()=default
virtual AtRawEvent *	ConstructOutputEvent (TClonesArray *outputEventArray, AtRawEvent *inputEvent)
	Construct output event from input event array. More...

Protected Member Functions
void	Clear ()
void	AddChToBaseline (const AtPadReference &ref, const AtPad &pad)
void	AverageBaseline ()
void	processPad (const AtPadReference &ref, const AtPad &pad)
virtual bool	isValidPad (const AtPad &pad)
virtual int	getAsad (const AtPadReference &ref)

Protected Attributes
const Int_t	fNumberCoBo
Int_t	fEventNumber {-1}
Double_t	fThreshold = 0
AtMapPtr	fMapping
Int_t	fNumberMissedAsads {}
Bool_t	fSetIsGood {false}
vecDoubleCoBo	fBaseline
vecIntCoBo	fRawBaseline
vecAgetCount	fAgetCount

Detailed Description

Filter that will subtract the average of every ch0 aget in a AsAd from all channels in an AsAd. Adam Anthony 7/16/21

Definition at line 29 of file AtFilterSubtraction.h.

Constructor & Destructor Documentation

AtFilterSubtraction()

AtFilterSubtraction::AtFilterSubtraction	(	AtMapPtr	map,
		Int_t	numCoBos = 10,
		Int_t	numAget = 4
	)

Definition at line 12 of file AtFilterSubtraction.cxx.

Member Function Documentation

AddChToBaseline()

void AtFilterSubtraction::AddChToBaseline ( const AtPadReference &  ref, const AtPad &  pad  )

protected

Definition at line 75 of file AtFilterSubtraction.cxx.

AverageBaseline()

void AtFilterSubtraction::AverageBaseline ( )

protected

Definition at line 85 of file AtFilterSubtraction.cxx.

Clear()

void AtFilterSubtraction::Clear ( )

protected

Definition at line 26 of file AtFilterSubtraction.cxx.

Filter()

void AtFilterSubtraction::Filter ( AtPad *  pad, AtPadReference *  padReference  )

overridevirtual

Called to filter each pad.

Optional padRef currently only used by SCA filter (10/20/22).

Parameters

[in]	pad	Pad to filter.
	[in[	padRefernece optional parameter only needed when when filtering FPN channels.

Implements AtFilter.

Definition at line 100 of file AtFilterSubtraction.cxx.

getAsad()

int AtFilterSubtraction::getAsad ( const AtPadReference &  ref )

protectedvirtual

Reimplemented in AtFilterFPN.

Definition at line 65 of file AtFilterSubtraction.cxx.

GetThreshold()

Double_t AtFilterSubtraction::GetThreshold ( ) const

inline

Definition at line 59 of file AtFilterSubtraction.h.

Init()

void AtFilterSubtraction::Init ( )

overridevirtual

Called at the init stage of the AtFilterTask.

Implements AtFilter.

Definition at line 117 of file AtFilterSubtraction.cxx.

InitEvent()

void AtFilterSubtraction::InitEvent ( AtRawEvent *  inputEvent )

overridevirtual

Called once for each event at the start of the Exec phase.

Implements AtFilter.

Reimplemented in AtFilterFPN.

Definition at line 41 of file AtFilterSubtraction.cxx.

IsGoodEvent()

bool AtFilterSubtraction::IsGoodEvent ( )

overridevirtual

Called at the end of an event. Returns if filtering was successful.

Implements AtFilter.

Definition at line 119 of file AtFilterSubtraction.cxx.

isValidPad()

bool AtFilterSubtraction::isValidPad ( const AtPad &  pad )

protectedvirtual

Should this pad be added to the average to subtract

Reimplemented in AtFilterFPN.

Definition at line 53 of file AtFilterSubtraction.cxx.

processPad()

void AtFilterSubtraction::processPad ( const AtPadReference &  ref, const AtPad &  pad  )

protected

Definition at line 69 of file AtFilterSubtraction.cxx.

SetIsGood()

void AtFilterSubtraction::SetIsGood ( Bool_t  val )

inline

Set if we should mark the event bad if we cannot find every AGET to do subtraction.

Definition at line 58 of file AtFilterSubtraction.h.

SetThreshold()

void AtFilterSubtraction::SetThreshold ( Double_t  thresh )

inline

Definition at line 56 of file AtFilterSubtraction.h.

Member Data Documentation

fAgetCount

vecAgetCount AtFilterSubtraction::fAgetCount

protected

Definition at line 43 of file AtFilterSubtraction.h.

fBaseline

vecDoubleCoBo AtFilterSubtraction::fBaseline

protected

Definition at line 39 of file AtFilterSubtraction.h.

fEventNumber

Int_t AtFilterSubtraction::fEventNumber {-1}

protected

Definition at line 32 of file AtFilterSubtraction.h.

fMapping

AtMapPtr AtFilterSubtraction::fMapping

protected

Definition at line 34 of file AtFilterSubtraction.h.

fNumberCoBo

const Int_t AtFilterSubtraction::fNumberCoBo

protected

Definition at line 31 of file AtFilterSubtraction.h.

fNumberMissedAsads

Int_t AtFilterSubtraction::fNumberMissedAsads {}

protected

Definition at line 35 of file AtFilterSubtraction.h.

fRawBaseline

vecIntCoBo AtFilterSubtraction::fRawBaseline

protected

Definition at line 41 of file AtFilterSubtraction.h.

fSetIsGood

Bool_t AtFilterSubtraction::fSetIsGood {false}

protected

Definition at line 36 of file AtFilterSubtraction.h.

fThreshold

Double_t AtFilterSubtraction::fThreshold = 0

protected

Definition at line 33 of file AtFilterSubtraction.h.

---

The documentation for this class was generated from the following files:

• /github/workspace/AtReconstruction/AtFilter/AtFilterSubtraction.h
• /github/workspace/AtReconstruction/AtFilter/AtFilterSubtraction.cxx
