#include <AtFilterFFT.h>

Inheritance diagram for AtFilterFFT:

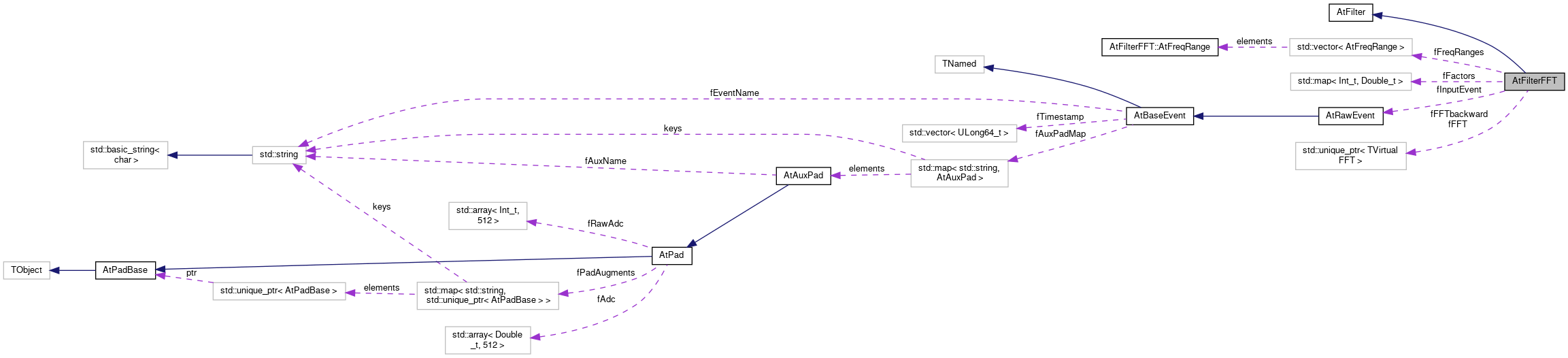

Collaboration diagram for AtFilterFFT:

[legend]

Classes
struct	AtFreqRange

Public Types
using	FreqRanges = std::vector< AtFreqRange >

Public Member Functions
	AtFilterFFT ()=default

	~AtFilterFFT ()=default

bool	AddFreqRange (AtFreqRange range)

void	SetSaveTransform (bool saveTransform)

void	SetSubtractBackground (bool subtractBackground)

bool	GetSaveTransform ()

bool	GetSubtractBackground ()

const FreqRanges &	GetFreqRanges ()

void	DumpFactors ()

void	Init () override
	Called at the init stage of the AtFilterTask. More...

void	InitEvent (AtRawEvent *event=nullptr) override
	Called once for each event at the start of the Exec phase. More...

void	Filter (AtPad pad, AtPadReference padReference) override

bool	IsGoodEvent () override
	Called at the end of an event. Returns if filtering was successful. More...

void	SetLowPass (int order, int cuttoff)

Public Member Functions inherited from AtFilter
virtual	~AtFilter ()=default

virtual AtRawEvent *	ConstructOutputEvent (TClonesArray outputEventArray, AtRawEvent inputEvent)
	Construct output event from input event array. More...

Protected Member Functions
virtual std::unique_ptr< AtPadFFT >	applyFrequencyCutsAndSetInverseFFT ()

Protected Attributes
FreqRanges	fFreqRanges

std::map< Int_t, Double_t >	fFactors

std::unique_ptr< TVirtualFFT >	fFFT {nullptr}

std::unique_ptr< TVirtualFFT >	fFFTbackward {nullptr}

Bool_t	fSaveTransform {false}

Bool_t	fSubtractBackground {true}

AtRawEvent *	fInputEvent {nullptr}

Static Protected Attributes
static constexpr Int_t	fTransformSize = 512

Detailed Description

Filter for applying a FFT to data, and multiplying the transformed data by some factor. The factor is determined by a series of FreqRanges that define a start and stop frequency and associated factor at the start/stop. It then linearly interpelates the factor between the two frequencies. By default the factor is 1 (i.e. no adjustment to the transformed data). For alternative behavior, extend the class and override the protected function applyFreqCuts().

The output of this filter is an AtRawEvent where the fPadList is filled with pads of the type AtPadFFT so the fourier-space representation of the filtered data is saved. If you wish to save the unfiltered data with the fourier-space represetation, the set the flag fSaveTransform and the input branch will be modified to contain AtPadFFTs.

Adam Anthony 4/20/22

Definition at line 33 of file AtFilterFFT.h.

Member Typedef Documentation

◆ FreqRanges

using AtFilterFFT::FreqRanges = std::vector<AtFreqRange>

Definition at line 45 of file AtFilterFFT.h.

Constructor & Destructor Documentation

◆ AtFilterFFT()

AtFilterFFT::AtFilterFFT ( )

default

◆ ~AtFilterFFT()

AtFilterFFT::~AtFilterFFT ( )

default

Member Function Documentation

◆ AddFreqRange()

bool AtFilterFFT::AddFreqRange ( AtFreqRange range )

Definition at line 39 of file AtFilterFFT.cxx.

◆ applyFrequencyCutsAndSetInverseFFT()

std::unique_ptr< AtPadFFT > AtFilterFFT::applyFrequencyCutsAndSetInverseFFT ( )

protectedvirtual

Sets the C2R (inverse) FFT after applying the frequency cuts and returns a AtPadFFT object that contains the frequency information used to set the C2R fft.

Definition at line 157 of file AtFilterFFT.cxx.

◆ DumpFactors()

void AtFilterFFT::DumpFactors ( )

Definition at line 179 of file AtFilterFFT.cxx.

◆ Filter()

void AtFilterFFT::Filter	(	AtPad *	pad,
		AtPadReference *	padReference
	)

overridevirtual

If save transform is set, will replace the pad in the input AtRawEvent with an AtPadFFT that stores the result of the FFT before any filtering. The output event will also contain AtPadFFTs with the transformed waveforms after the filter on magnitude has been applied. Will multiply each complex fourier component by a number defined in the frequency ranges, and store the resultant waveform in the filtered raw event.

Implements AtFilter.

Definition at line 81 of file AtFilterFFT.cxx.

◆ GetFreqRanges()

const FreqRanges& AtFilterFFT::GetFreqRanges ( )

inline

Definition at line 72 of file AtFilterFFT.h.

◆ GetSaveTransform()

bool AtFilterFFT::GetSaveTransform ( )

inline

Definition at line 69 of file AtFilterFFT.h.

◆ GetSubtractBackground()

bool AtFilterFFT::GetSubtractBackground ( )

inline

Definition at line 70 of file AtFilterFFT.h.

◆ Init()

void AtFilterFFT::Init ( )

overridevirtual

Called at the init stage of the AtFilterTask.

Implements AtFilter.

Definition at line 56 of file AtFilterFFT.cxx.

◆ InitEvent()

void AtFilterFFT::InitEvent ( AtRawEvent * inputEvent = nullptr )

overridevirtual

Called once for each event at the start of the Exec phase.

Implements AtFilter.

Definition at line 69 of file AtFilterFFT.cxx.

◆ IsGoodEvent()

bool AtFilterFFT::IsGoodEvent ( )

inlineoverridevirtual

Called at the end of an event. Returns if filtering was successful.

Implements AtFilter.

Definition at line 78 of file AtFilterFFT.h.

◆ SetLowPass()

void AtFilterFFT::SetLowPass	(	int	order,
		int	cuttoff
	)

Definition at line 18 of file AtFilterFFT.cxx.

◆ SetSaveTransform()

void AtFilterFFT::SetSaveTransform ( bool saveTransform )

inline

Definition at line 66 of file AtFilterFFT.h.

◆ SetSubtractBackground()

void AtFilterFFT::SetSubtractBackground ( bool subtractBackground )

inline

Definition at line 67 of file AtFilterFFT.h.

Member Data Documentation

◆ fFactors

std::map<Int_t, Double_t> AtFilterFFT::fFactors

protected

Definition at line 49 of file AtFilterFFT.h.

◆ fFFT

std::unique_ptr<TVirtualFFT> AtFilterFFT::fFFT {nullptr}

protected

Definition at line 51 of file AtFilterFFT.h.

◆ fFFTbackward

std::unique_ptr<TVirtualFFT> AtFilterFFT::fFFTbackward {nullptr}

protected

Definition at line 52 of file AtFilterFFT.h.

◆ fFreqRanges

FreqRanges AtFilterFFT::fFreqRanges

protected

Definition at line 48 of file AtFilterFFT.h.

◆ fInputEvent

AtRawEvent* AtFilterFFT::fInputEvent {nullptr}

protected

Definition at line 57 of file AtFilterFFT.h.

◆ fSaveTransform

Bool_t AtFilterFFT::fSaveTransform {false}

protected

Definition at line 54 of file AtFilterFFT.h.

◆ fSubtractBackground

Bool_t AtFilterFFT::fSubtractBackground {true}

protected

Definition at line 55 of file AtFilterFFT.h.

◆ fTransformSize

constexpr Int_t AtFilterFFT::fTransformSize = 512

staticconstexprprotected

Definition at line 59 of file AtFilterFFT.h.

The documentation for this class was generated from the following files:

/github/workspace/AtReconstruction/AtFilter/AtFilterFFT.h
/github/workspace/AtReconstruction/AtFilter/AtFilterFFT.cxx
